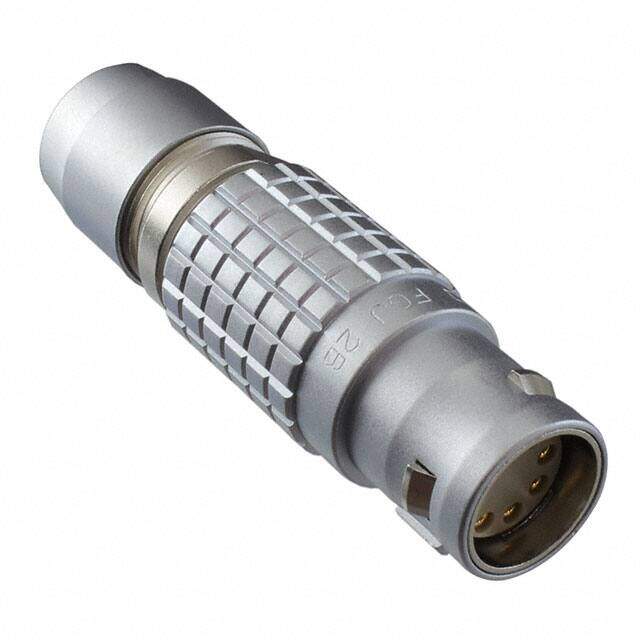

FGJ.1B.302.CLLD52Z
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Push Pull Connectors STRAIGHT PLUG FEMALE W. CABLE COLLET
PDF
/
Buying Options
Total Price: USD $37.7
Unit Price: USD $37.6992
≥1 USD $37.6992
≥10 USD $33.01584
≥100 USD $31.589184
≥500 USD $30.57032
≥1000 USD $29.55128
≥3000 USD $27.920851
Inventory: 60
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP50
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 59.0μin 1.50μm
Length 43mm
Diameter 12mm
Technical
Cable Opening 0.165 ~ 0.205 (4.20mm ~ 5.20mm)
Contact Style Socket
Contact Gender Female
Shell Size - Insert 302
Shell Finish Chrome
Current Rating 15A
Ingress Protection IP50 - Dust Protected
Shielding Shielded
Orientation J
Contact Finish - Mating Gold
Fastening Type Push-Pull
Color Silver
Number of Positions 2
Connector Type Plug, Female Sockets
ECCN Code EAR99
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
Series 1B
Packaging Bulk
Operating Temperature -55°C~250°C
Physical
Backshell Material, Plating Brass, Chrome
Insert Material Polyetheretherketone (PEEK)
Shell Material Brass
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Bronze
