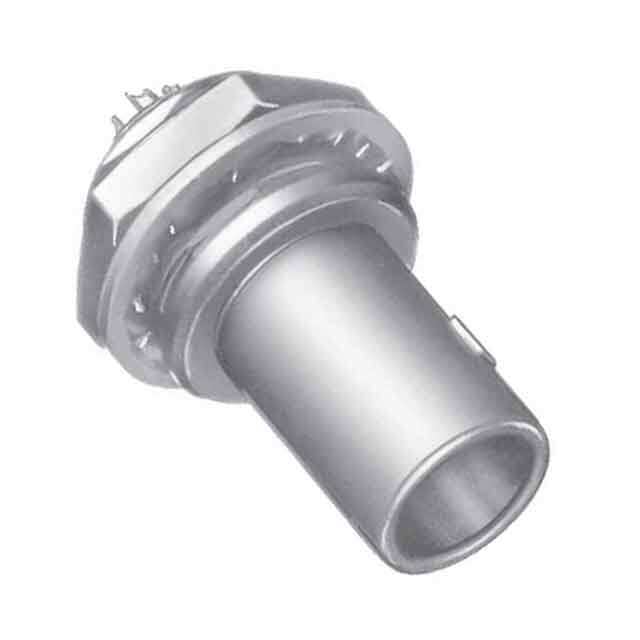

FAG.1B.308.CLA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Push Pull Connectors FIXED PLUG NON-LATCHING
PDF
/
Buying Options
Total Price: USD $36.42
Unit Price: USD $36.4232
≥1 USD $36.4232
≥10 USD $31.89296
≥100 USD $30.51488
≥500 USD $29.530336
≥1000 USD $28.546056
≥3000 USD $26.971085
Inventory: 151
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material NOT SPECIFIED
Mount Bulkhead, Panel, Rear Side Nut
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Shell Material Brass
Insert Material Polyetheretherketone (PEEK)
Technical
Operating Temperature -55°C~250°C
Packaging Bulk
Series 1B
Pbfree Code yes
Part Status Active
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 8
Color Silver
Fastening Type Push-Pull
Contact Finish - Mating Gold
Orientation G
Shielding Shielded
Ingress Protection IP50 - Dust Protected
Current Rating 5A
Shell Finish Chrome
Shell Size - Insert 308
Contact Gender Male
Contact Style Pin
Dimensions
Diameter 15.8mm
Length 25.2mm
Contact Finish Thickness - Mating 39.4μin 1.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Ratings IP50
