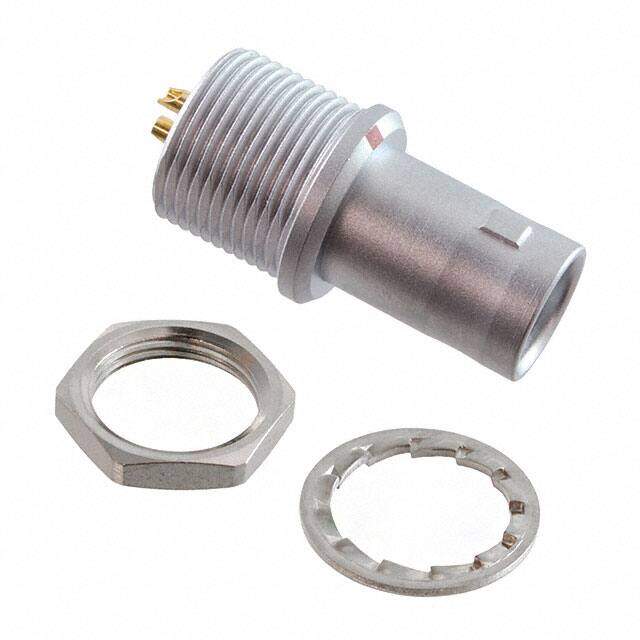

FAG.0B.307.CLA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Push Pull Connectors FIXED PLUG NON-LATCHING
PDF
/
Buying Options
Total Price: USD $17.8
Unit Price: USD $17.8024
≥1 USD $17.8024
≥10 USD $16.94
Inventory: 15
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Bulkhead, Panel, Rear Side Nut
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Shell Material Brass
Insert Material Polyetheretherketone (PEEK)
Technical
Operating Temperature -55°C~250°C
Packaging Bulk
Series 0B
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Cup
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 7
Color Silver
Gender Male
HTS Code 8536.69.40.20
Fastening Type Push-Pull
Contact Finish - Mating Gold
Orientation G
Shielding Shielded
Ingress Protection IP50 - Dust Protected
Current Rating 2.5A
Shell Finish Chrome
Shell Size - Insert 307
Contact Style Pin
Dimensions
Diameter 12.4mm
Length 20.8mm
Contact Finish Thickness - Mating 39.4μin 1.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Ratings IP50
