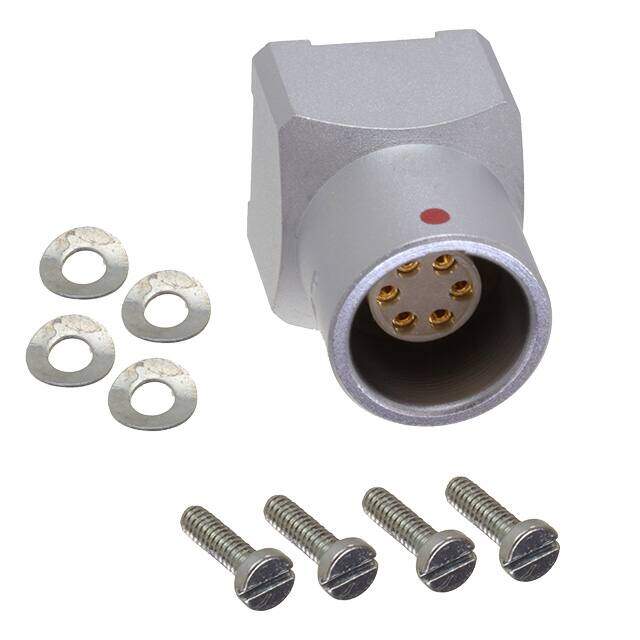

EZG.0B.302.CLN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Push Pull Connectors STR RECPT F PR CRCT
PDF
/
Buying Options
Total Price: USD $27.03
Unit Price: USD $27.0336
≥1 USD $27.0336
≥10 USD $23.67112
≥100 USD $22.648384
≥500 USD $21.917808
≥1000 USD $21.187232
≥3000 USD $20.018275
Inventory: 282
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Bronze
Mount Through Hole
Mounting Type Through Hole
Shell Material Brass
Insert Material Polyetheretherketone (PEEK)
Technical
Operating Temperature -55°C~250°C
Packaging Bulk
Series 0B
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 2
Color Silver
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 2
Orientation G
Shielding Shielded
Ingress Protection IP50 - Dust Protected
Current Rating 10A
Shell Finish Chrome
Shell Size - Insert 302
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Contact Style Socket
Environmental Characteristics CORROSION/MOISTURE RESISTANT
Coupling Type SNAP
Dimensions
Diameter 10mm
Length 15mm
Contact Finish Thickness - Mating 59.0μin 1.50μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Ratings IP50
