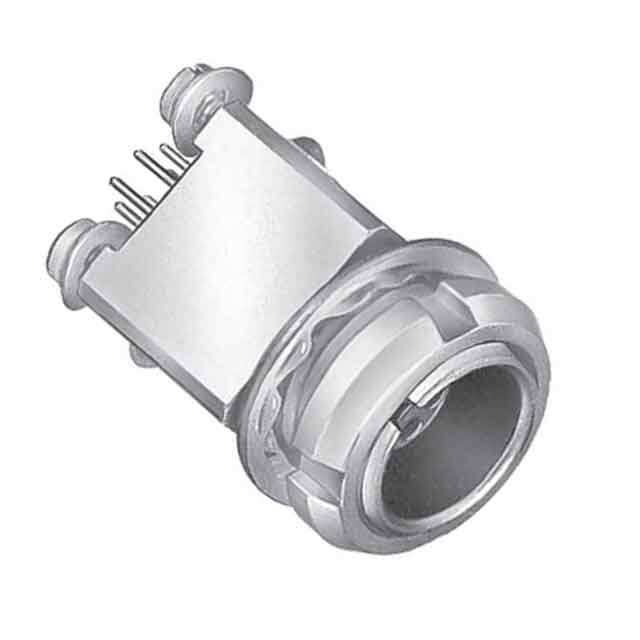

EYG.1B.308.CLN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Push Pull Connectors FIX RECPT F PR CRCT
PDF
/
Buying Options
Total Price: USD $48.51
Unit Price: USD $48.5056
≥1 USD $48.5056
≥10 USD $44.50776
≥100 USD $42.795808
≥500 USD $41.369152
≥1000 USD $39.086784
Inventory: 131
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP50
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 59.0μin 1.50μm
Length 19mm
Diameter 14mm
Technical
Contact Style Socket
Backshell Type SOLID
Empty Shell NO
Shell Size - Insert 308
Shell Finish Chrome
Current Rating 5A
Ingress Protection IP50 - Dust Protected
Shielding Shielded
Orientation G
Total Number of Contacts 8
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Female
Color Silver
Number of Positions 8
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
Series 1B
Packaging Bulk
Operating Temperature -55°C~250°C
Physical
Insert Material Polyetheretherketone (PEEK)
Shell Material Brass
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Panel, Through Hole
Contact Material Bronze
