ERD.0S.304.CLL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

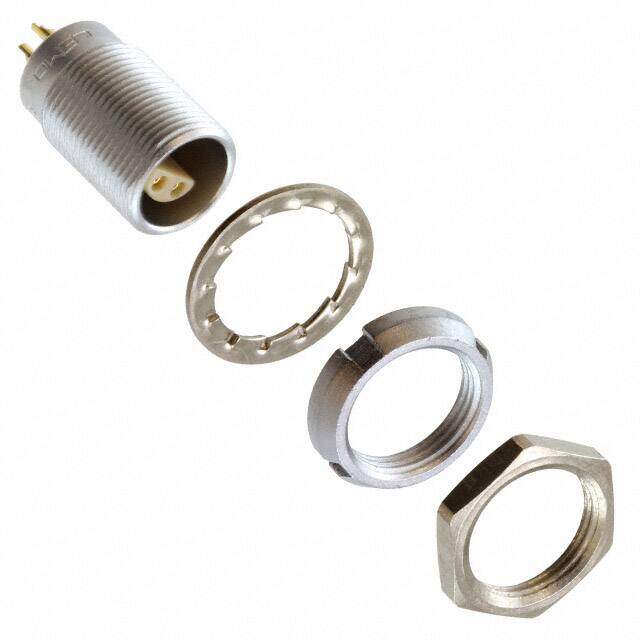

CONN CIRC RCPT 4POS SOLDER CUP
PDF
/
Buying Options
Total Price: USD $21.19
Unit Price: USD $21.1904
≥1 USD $21.1904
≥10 USD $18.56008
≥100 USD $17.757696
≥500 USD $17.184992
≥1000 USD $16.612112
≥3000 USD $15.695574
Inventory: 184
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP50
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Shell Size - Insert 304
Shell Finish Chrome
Current Rating 7A
Ingress Protection IP50 - Dust Protected
Shielding Shielded
Orientation Keyed
Contact Finish - Mating Gold
Fastening Type Push-Pull
Color Silver
Number of Positions 4
Connector Type Receptacle, Female Sockets and Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series 0S
Packaging Bulk
Operating Temperature -55°C~250°C
Physical
Insert Material Polyetheretherketone (PEEK)
Shell Material Brass
Mounting Feature Front and Rear Side Nut
Mounting Type Panel Mount
Mount Front, Panel, Rear Side Nut
Contact Material Brass, Bronze
Supply Chain
Factory Lead Time 14 Weeks
