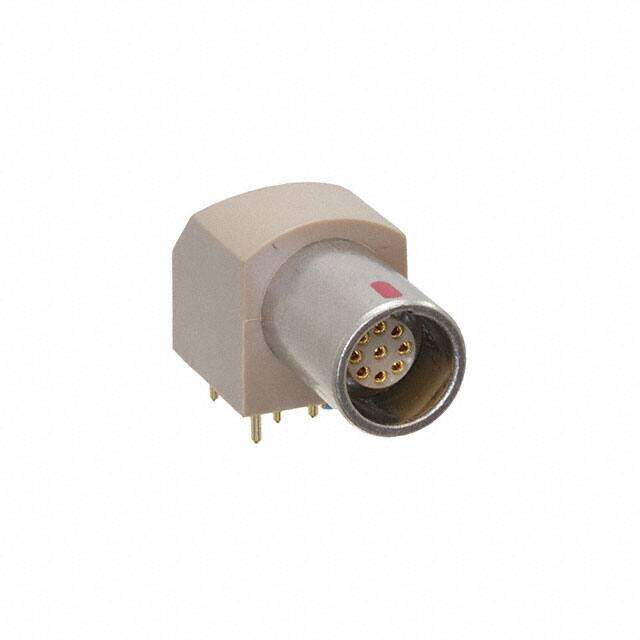

EPG.0B.303.HLN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Connector, 0B Series, Receptacle, 3, Socket, Solder, PCB Mount
PDF
/
Buying Options
Total Price: USD $24.41
Unit Price: USD $24.4112
≥1 USD $24.4112
≥10 USD $23.232
Inventory: 517
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP50
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 59.0μin 1.50μm
Width 9mm
Length 25mm
Height 12.6mm
Technical
Body Plating Chrome
Coupling Type SNAP
Contact Style Socket
Contact Gender Female
Shell Size - Insert 303
Shell Finish Nickel
Current Rating 4.5A
Ingress Protection IP50 - Dust Protected
Shielding Shielded
Orientation G
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 400V
Fastening Type Push-Pull
Gender Receptacle
Color Brown, Silver
Number of Positions 3
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Ground
Series 0B
Packaging Bulk
Operating Temperature -55°C~250°C
Physical
Body Material Brass
Insert Material Polyetheretherketone (PEEK)
Shell Material Brass and Polyphenylene Sulfide (PPS)
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Bronze
Supply Chain
Factory Lead Time 12 Weeks
