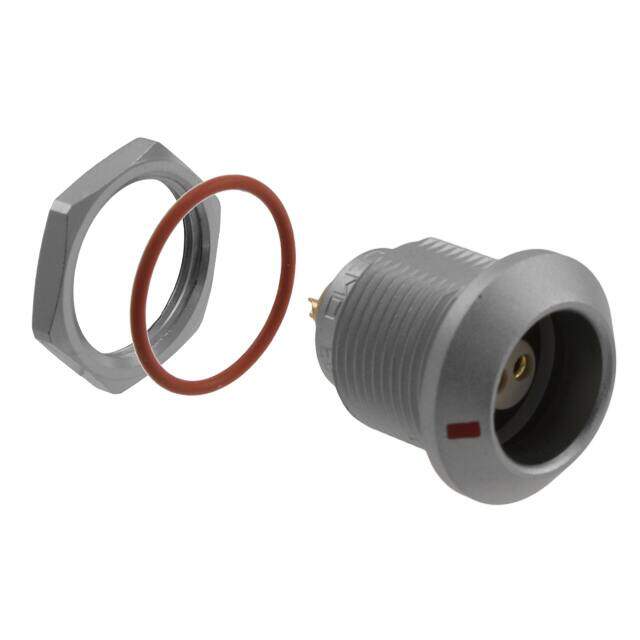

EGG.1K.302.CLL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 2POS SOLDER CUP
PDF
/
Buying Options
Total Price: USD $33.43
Unit Price: USD $33.4312
≥1 USD $33.4312
≥10 USD $29.27232
≥100 USD $28.007584
≥500 USD $27.104
≥1000 USD $26.200504
≥3000 USD $24.754963
Inventory: 399
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP66, Water Resistant, Waterproof
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 59.0μin 1.50μm
Technical
Coupling Type SNAP
Environmental Characteristics CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Shell Size - Insert 302
Shell Finish Chrome
Current Rating 15A
Ingress Protection IP66/68 - Dust Tight, Water Resistant, Waterproof
Shielding Shielded
Orientation G
Total Number of Contacts 2
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Color Silver
Number of Positions 2
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series 1K
Packaging Bulk
Operating Temperature -55°C~200°C
Physical
Insert Material Polyetheretherketone (PEEK)
Shell Material Brass
Mounting Feature Bulkhead - Rear Side Nut
Mounting Type Panel Mount
Mount Flanges, Panel, Rear Side Nut
Contact Material Bronze
Supply Chain
Factory Lead Time 12 Weeks
