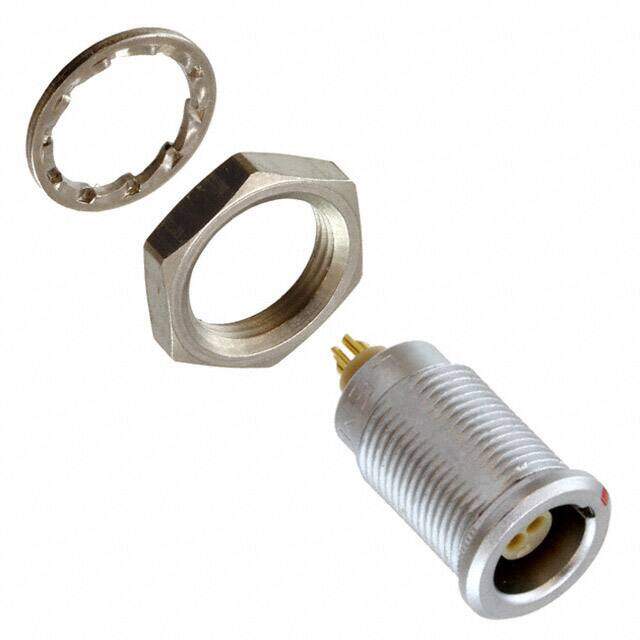

EGG.00.302.CLL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Push Pull Connectors RECP SIZE 00 2-PIN FEMALE SLDR
PDF
/
Buying Options
Total Price: USD $18.25
Unit Price: USD $18.2512
≥1 USD $18.2512
≥10 USD $15.82064
≥100 USD $14.994496
≥500 USD $14.777136
≥1000 USD $13.038696
≥3000 USD $12.16945
Inventory: 226
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Bronze
Mount Flanges, Panel, Rear Side Nut
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Shell Material Brass
Insert Material Polyetheretherketone (PEEK)
Technical
Operating Temperature -55°C~250°C
Packaging Bulk
Series 00B
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 2
Color Silver
Gender Receptacle
Additional Feature POLARIZED
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Current Rating (Amps) 3.5A
Total Number of Contacts 2
Orientation G
Shielding Shielded
Ingress Protection IP50 - Dust Protected
Current Rating 5A
Shell Finish Chrome
Shell Size - Insert 302
Voltage - Rated AC 350V
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Contact Style Socket
Contact Resistance 7.5mOhm
Coupling Type THREADED
Dimensions
Diameter 10.2mm
Length 15.5mm
Contact Finish Thickness - Mating 59.0μin 1.50μm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings IP50
