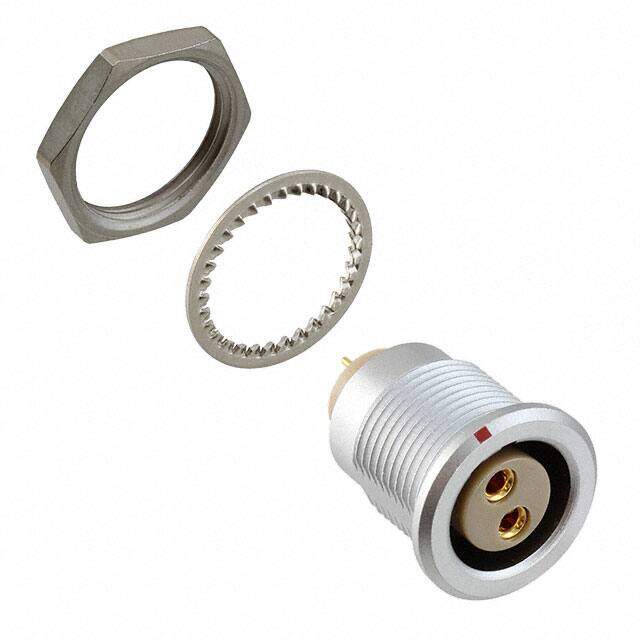

EGA.0B.307.CLL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Push Pull Connectors STRAIGHT RECEPTACLE
PDF
/
Buying Options
Total Price: USD $25.19
Unit Price: USD $25.1944
≥1 USD $25.1944
≥10 USD $22.05896
≥100 USD $21.105568
≥500 USD $20.424624
≥1000 USD $19.743768
≥3000 USD $18.654486
Inventory: 65
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP50
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 59.0μin 1.50μm
Length 20.7mm
Diameter 12.4mm
Technical
Contact Style Socket
Shell Size - Insert 307
Shell Finish Chrome
Current Rating 2.5A
Ingress Protection IP50 - Dust Protected
Shielding Shielded
Orientation A
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.20
Gender Female
Color Silver
Number of Positions 7
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Series 0B
Packaging Bulk
Operating Temperature -55°C~250°C
Physical
Insert Material Polyetheretherketone (PEEK)
Shell Material Brass
Mounting Feature Bulkhead - Rear Side Nut
Mounting Type Panel Mount
Mount Flanges, Panel, Rear Side Nut
Contact Material Bronze
Supply Chain
Factory Lead Time 12 Weeks
