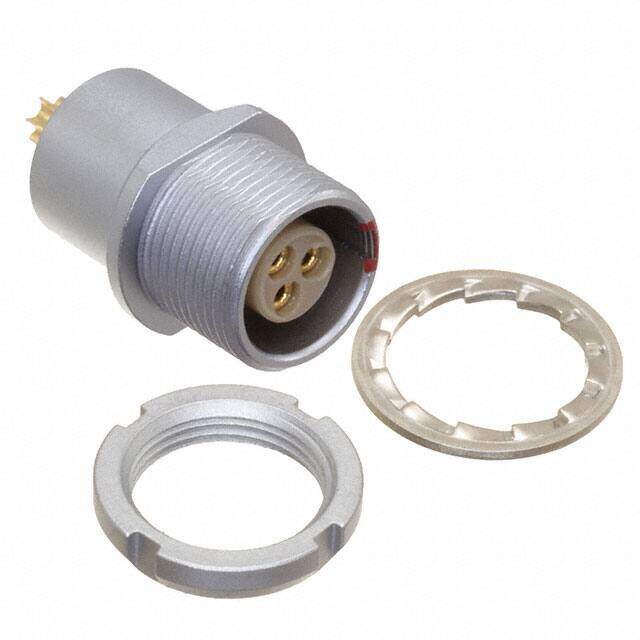

EEG.2B.307.CLL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Push Pull Connectors FIXED RECEPTACLE NUT FIXING
PDF
/
Buying Options
Total Price: USD $46.55
Unit Price: USD $46.552
≥1 USD $46.552
≥10 USD $42.71872
≥100 USD $41.075936
≥500 USD $39.706656
≥1000 USD $37.515984
Inventory: 191
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP50
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 59.0μin 1.50μm
Length 26.7mm
Diameter 20mm
Technical
Plating Nickel
Contact Style Socket
Contact Gender Female
Shell Size - Insert 307
Shell Finish Chrome
Current Rating 11A
Ingress Protection IP50 - Dust Protected
Shielding Shielded
Orientation G
Contact Finish - Mating Gold
Fastening Type Push-Pull
Color Silver
Number of Positions 7
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series 2B
Packaging Bulk
Operating Temperature -55°C~250°C
Physical
Insert Material Polyetheretherketone (PEEK)
Shell Material Brass
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount
Mount Flanges, Front Side Nut, Panel
Contact Material Bronze
