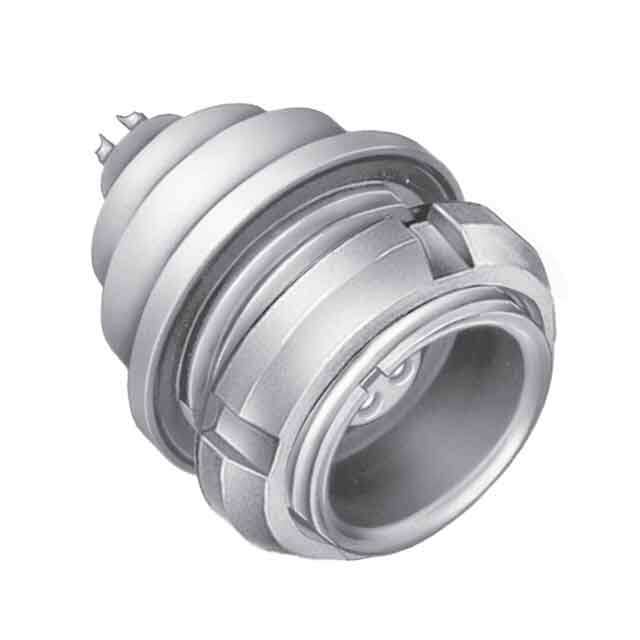

EEG.1K.304.CLN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Push Pull Connectors FIXED RECEPTACLE NUT FIXING
PDF
/
Inventory: 2668
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP66, IP68, Water Resistant, Waterproof
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 59.0μin 1.50μm
Technical
Wire/Cable Gauge 28 AWG
Contact Gender Female
Voltage - Rated AC 1.35kV
Shell Size - Insert 304
Shell Finish Chrome
Current Rating 10A
Ingress Protection IP66/68 - Dust Tight, Water Resistant, Waterproof
Shielding Shielded
Orientation G
Contact Finish - Mating Gold
Voltage - Rated DC 1.91kV
Fastening Type Push-Pull
Color Silver
Number of Positions 4
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Series 1K
Packaging Bulk
Operating Temperature -55°C~200°C
Physical
Insert Material Polyetheretherketone (PEEK)
Shell Material Brass
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole
Mount Flanges, Panel, Through Hole
Contact Material Bronze
