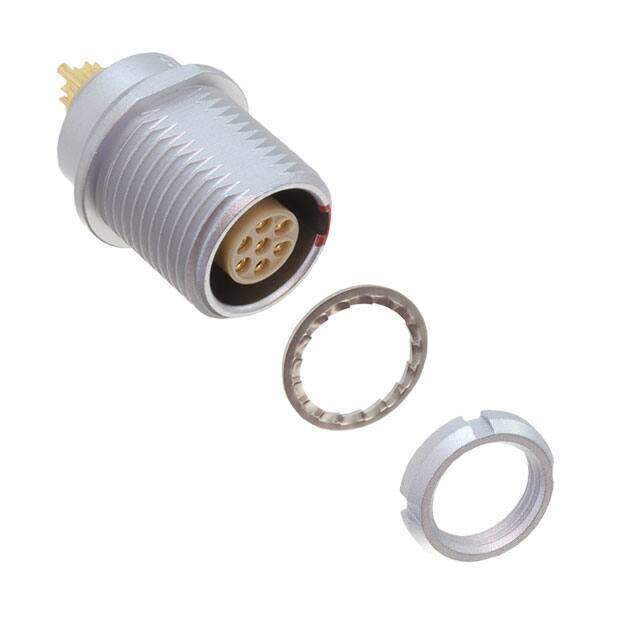

EEG.1B.307.CLL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Push Pull Connectors INSERT FOR SIZE 1B RECEPT 7 POS
PDF
/
Buying Options
Total Price: USD $35.71
Unit Price: USD $35.7104
≥1 USD $35.7104
≥10 USD $31.27344
≥100 USD $29.922464
≥500 USD $28.957104
≥1000 USD $27.991832
≥3000 USD $26.447485
Inventory: 54
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP50
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 59.0μin 1.50μm
Length 23mm
Diameter 16mm
Technical
Wire/Cable Gauge 22 AWG
Contact Style Socket
Contact Gender Female
Shell Size - Insert 307
Shell Finish Chrome
Current Rating 7A
Ingress Protection IP50 - Dust Protected
Shielding Shielded
Orientation G
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.20
Color Silver
Number of Positions 7
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series 1B
Packaging Bulk
Operating Temperature -55°C~250°C
Physical
Insert Material Polyetheretherketone (PEEK)
Shell Material Brass
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount
Mount Flanges, Front Side Nut, Panel
Contact Material Bronze
Supply Chain
Factory Lead Time 12 Weeks
