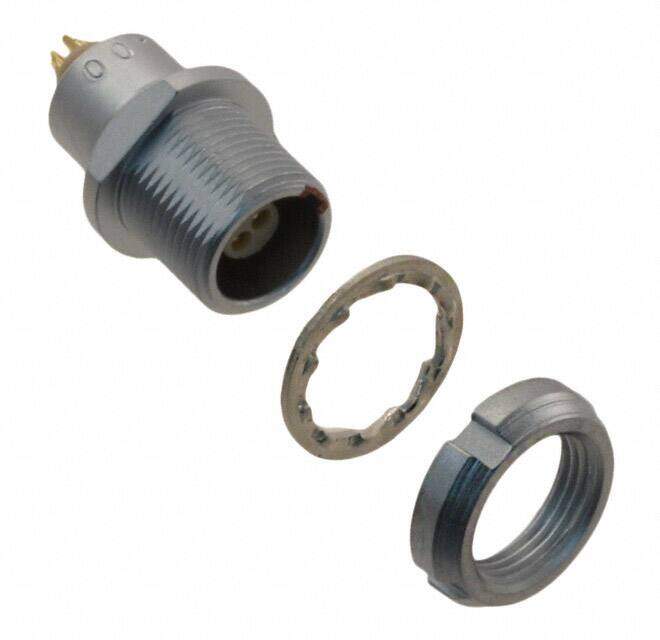

EEG.00.302.CLL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 2POS SOLDER CUP
PDF
/
Buying Options
Total Price: USD $18.5
Unit Price: USD $18.4976
≥1 USD $18.4976
≥10 USD $16.19816
≥100 USD $15.49856
≥500 USD $14.998544
≥1000 USD $14.498528
≥3000 USD $13.698643
Inventory: 110
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Bronze
Mount Flanges, Front Side Nut, Panel
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Shell Material Brass
Insert Material Polyetheretherketone (PEEK)
Technical
Operating Temperature -55°C~250°C
Packaging Bulk
Series 00B
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 2
Color Silver
Fastening Type Push-Pull
Contact Finish - Mating Gold
Orientation G
Shielding Shielded
Ingress Protection IP50 - Dust Protected
Current Rating 5A
Shell Finish Chrome
Shell Size - Insert 302
Contact Gender Female
Contact Style Socket
Dimensions
Diameter 10mm
Length 15.5mm
Contact Finish Thickness - Mating 59.0μin 1.50μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Ratings IP50
