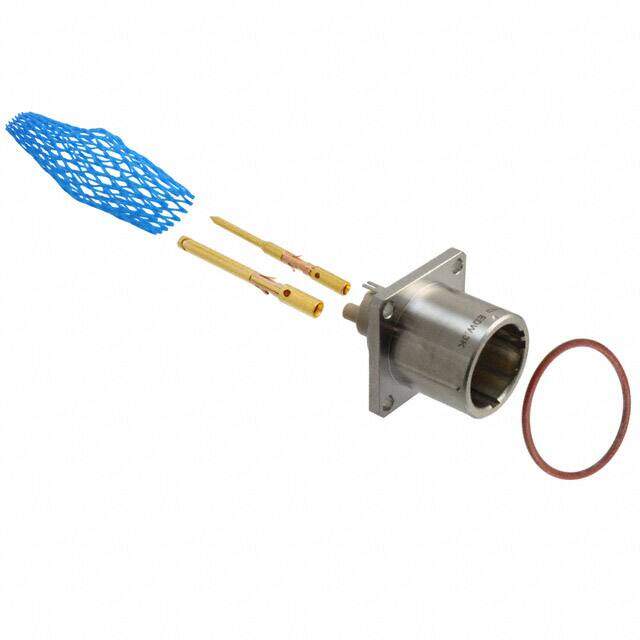

EDW.3K.93C.TLC
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT MALE 6POS GOLD CRIMP
PDF
/
Inventory: 3741
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Mount Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Shell Material Stainless Steel
Insert Material Polyetheretherketone (PEEK)
Technical
Operating Temperature -40°C~80°C
Packaging Bulk
Series 3K
Feature Ground
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
ECCN Code EAR99
Connector Type Receptacle, Male Pins
Number of Positions 6 (2 + 2 Fiber Optic + 2 Power)
Applications Audio, Video
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Option GENERAL PURPOSE
Current Rating (Amps) 3A 10A
Orientation W
Ingress Protection IP68 - Dust Tight, Waterproof
Current Rating 10A
Shell Size - Insert 93C
Number of Contacts 5
Contact Gender Female
Coupling Type SNAP
Insertion Loss 0.1 dB
Mode SINGLE
Compliance
RoHS Status RoHS Compliant
Ratings Dust Tight, IP68, Waterproof
