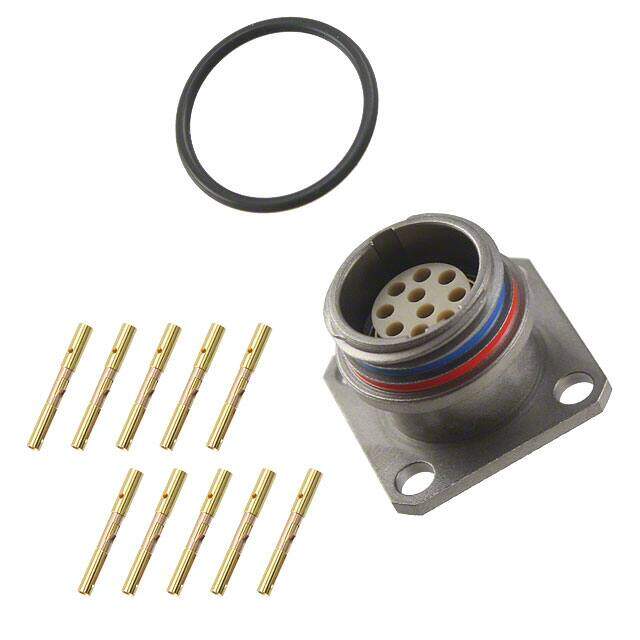

EDN.0M.305.XLM
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 5POS GOLD CRIMP
PDF
/
Buying Options
Total Price: USD $39.41
Unit Price: USD $39.4064
≥1 USD $39.4064
Inventory: 46
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP68, Waterproof
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Contact Finish Thickness - Mating 59.0μin 1.50μm
Technical
Cable Opening 0.186 (4.72mm)
Shell Size - Insert 305
Shell Finish Nickel
Current Rating 6.5A
Ingress Protection IP68 - Dust Tight, Waterproof
Shielding Shielded
Orientation N (Normal)
Contact Finish - Mating Gold
Fastening Type Threaded
Gender Receptacle
Applications Aerospace, Automotive, Aviation, Military
Color Gray
Number of Positions 5
Connector Type Receptacle, Female Sockets
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series 0M
Packaging Bulk
Operating Temperature -55°C~200°C
Physical
Body Material Aluminium
Insert Material Polyetheretherketone (PEEK)
Shell Material Aluminum Alloy
Mounting Feature Flange
Mounting Type Panel Mount
Mount Flanges, Panel
Contact Material Bronze
Supply Chain
Factory Lead Time 12 Weeks
