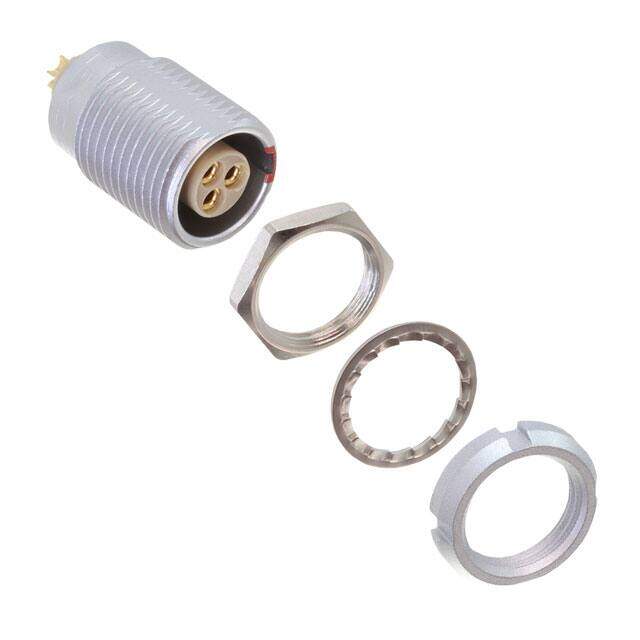

ECG.1B.303.CLL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Push Pull Connectors FIXED RECEPTACLE
PDF
/
Buying Options
Total Price: USD $20.1
Unit Price: USD $20.0992
≥1 USD $20.0992
≥10 USD $19.12944
Inventory: 459
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP50
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 59.0μin 1.50μm
Length 19.8mm
Diameter 15.8mm
Technical
Wire/Cable Gauge 20 AWG
Contact Style Socket
Contact Gender Female
Shell Size - Insert 303
Shell Finish Chrome
Current Rating 12A
Ingress Protection IP50 - Dust Protected
Shielding Shielded
Orientation G
Contact Finish - Mating Gold
Fastening Type Push-Pull
Color Silver
Number of Positions 3
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder Cup
Part Status Active
Pbfree Code yes
Series 1B
Packaging Bulk
Operating Temperature -55°C~250°C
Physical
Insert Material Polyetheretherketone (PEEK)
Shell Material Brass
Mounting Feature Front and Rear Side Nut
Mounting Type Panel Mount
Mount Front, Panel, Rear Side Nut
Contact Material Bronze
Supply Chain
Factory Lead Time 12 Weeks
