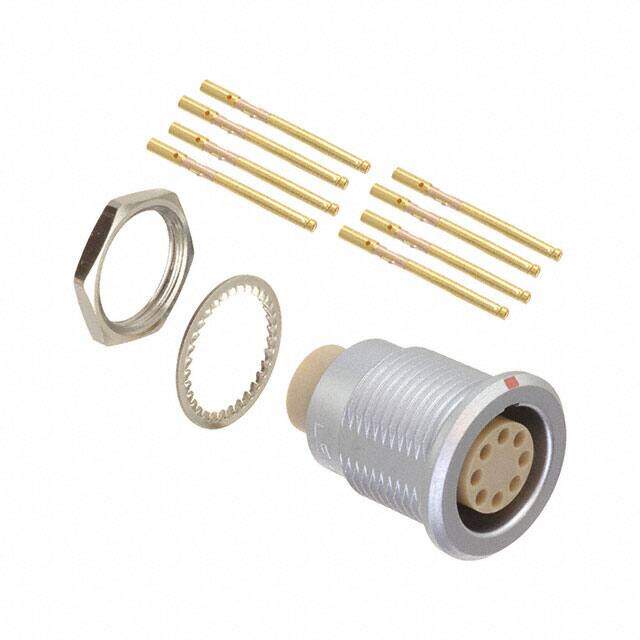

ECG.0B.307.CLL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Push Pull Connectors INSERT FOR SIZE 0B RECEPT 7 POS
PDF
/
Buying Options
Total Price: USD $18.4
Unit Price: USD $18.4008
≥1 USD $18.4008
≥10 USD $17.512
Inventory: 322
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Bronze
Mount Front, Panel, Rear Side Nut
Mounting Type Panel Mount
Mounting Feature Front and Rear Side Nut
Shell Material Brass
Insert Material Polyetheretherketone (PEEK)
Technical
Operating Temperature -55°C~250°C
Packaging Bulk
Series 0B
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 7
Color Silver
Fastening Type Push-Pull
Contact Finish - Mating Gold
Orientation G
Shielding Shielded
Ingress Protection IP50 - Dust Protected
Current Rating 2.5A
Shell Finish Chrome
Shell Size - Insert 307
Contact Gender Female
Contact Style Socket
Wire/Cable Gauge 28 AWG
Dimensions
Diameter 12.4mm
Length 16.1mm
Contact Finish Thickness - Mating 59.0μin 1.50μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Ratings IP50
