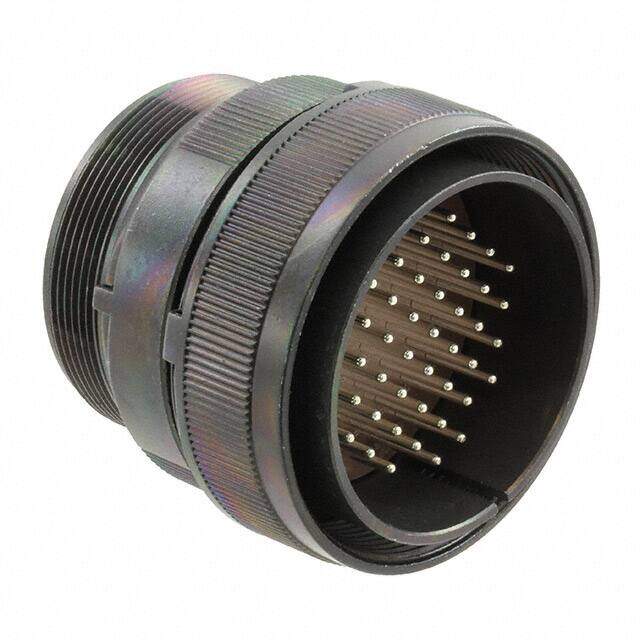

N/MS3106A36-10P
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
CONN PLUG MALE 48POS SOLDER CUP
PDF
/
Inventory: 4993
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Shell Size - Insert 36-10
Shell Finish Zinc
Current Rating 13A
Orientation N (Normal)
Current Rating (Amps) 13A
Contact Finish - Mating Silver
Fastening Type Threaded
Voltage - Rated 500VAC
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 48
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series N/MS
Published 2008
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material Aluminum Alloy
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Silver
Contact Material Copper Alloy
