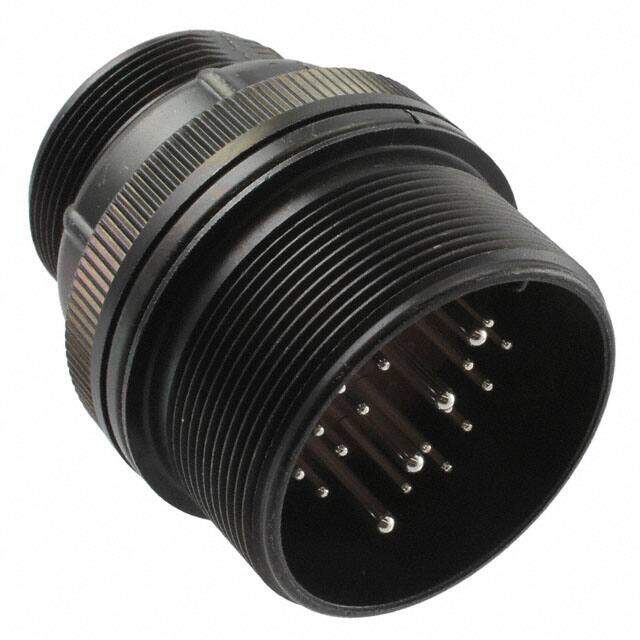

N/MS3101B28-11P
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT MALE 22POS SOLDER CUP
PDF
/
Inventory: 2967
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Silver
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Aluminum Alloy
Insert Material Synthetic Resin
Backshell Material, Plating Aluminum Alloy, Zinc
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2006
Series N/MS
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Male Pins
Number of Positions 22
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Black
Voltage - Rated 500VAC
Fastening Type Threaded
Contact Finish - Mating Silver
Current Rating (Amps) 13A 23A
Orientation N (Normal)
Current Rating 23A
Shell Finish Zinc
Shell Size - Insert 28-11
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
