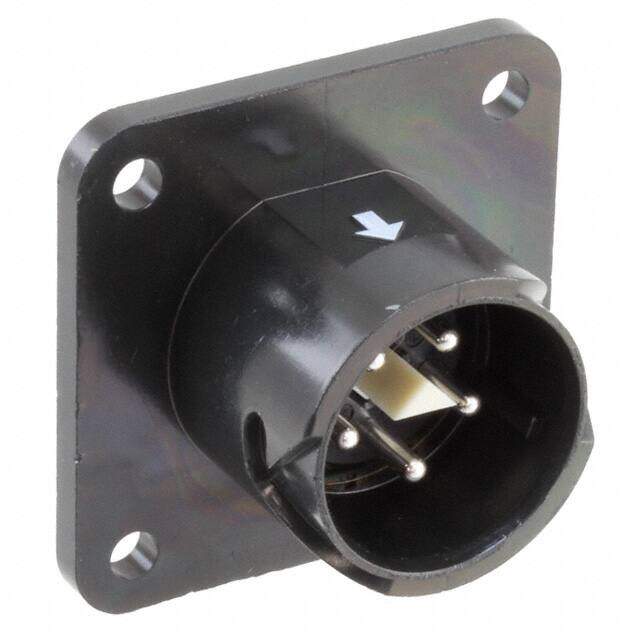

JN2AW05MH1 image
Favorite
JN2AW05MH1 image
Favorite

JN2AW05MH1

JAE Electronics
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description CONN RCPT MALE 5POS SOLDER CUP
PDF
/
Inventory: 5135
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Silver
Mount Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Shell Material Zinc Alloy
Insert Material Synthetic Resin

Technical

Operating Temperature -20°C~100°C
Packaging Bulk
Published 2008
Series JN2W
Feature Ground Lug
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Male Pins
Number of Positions 5 (4 Power + PE)
Max Operating Temperature 100°C
Min Operating Temperature -20°C
Color Black
Applications Industrial
Voltage - Rated 400VAC
Fastening Type Push-Twist
Contact Finish - Mating Silver
Current Rating (Amps) 13A
Orientation N (Normal)
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 13A
Shell Finish Zinc
Shell Size - Insert W

Compliance

RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
