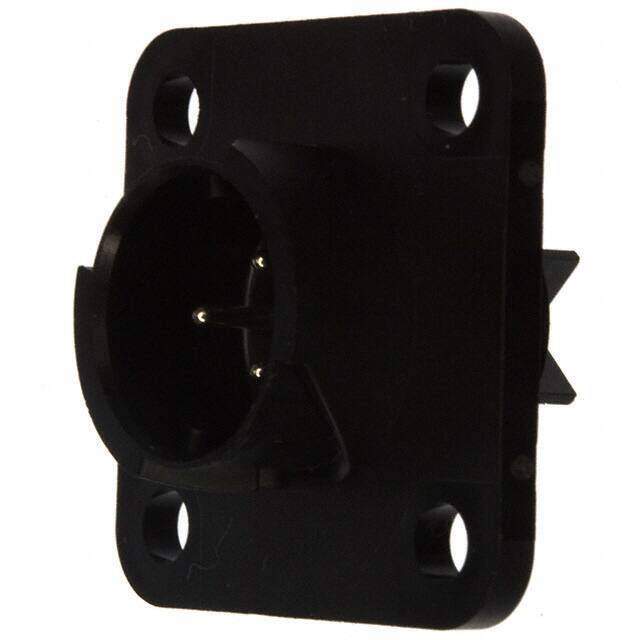

JN1AS04MK1 image
Favorite
JN1AS04MK1 image
Favorite

JN1AS04MK1

JAE Electronics
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description CONN RCPT WATERPRF 4POS SLD PIN
PDF
/
Buying Options
Total Price: USD $6.38
Unit Price: USD $6.38
≥1 USD $6.38
≥10 USD $5.76664
≥100 USD $5.447904
≥500 USD $5.315024
≥1000 USD $5.049264
≥3000 USD $4.517779
Inventory: 980
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown

Technical

Cable Opening 0.591 (15.00mm)
Plating Copper
Contact Gender Female
Number of Contacts 4
Shell Size - Insert S
Current Rating 5A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation N (Normal)
Current Rating (Amps) 5A
Contact Finish - Mating Silver
Fastening Type Push-Twist
Voltage - Rated 200VAC
Gender Receptacle
Color Black
Min Operating Temperature -20°C
Max Operating Temperature 125°C
Number of Positions 4 (3 + PE)
Connector Type Receptacle, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series JN1
Published 2008
Packaging Bag
Operating Temperature -20°C~125°C

Physical

Body Material Metal
Insert Material Synthetic Resin
Shell Material Synthetic Resin
Insulation Material Plastic
Mounting Feature Flange
Mounting Type Panel Mount
Mount Flanges, Panel
Contact Plating Silver
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 14 Weeks
