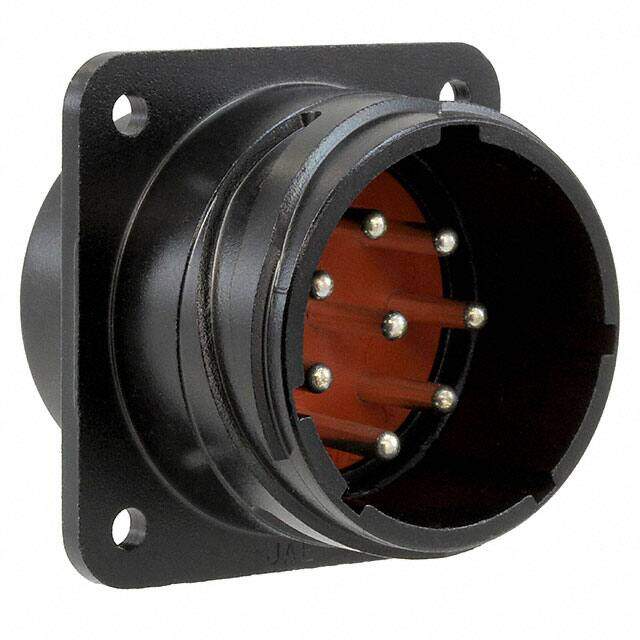

JL05-2L22-23P-R
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT MALE 8POS SOLDER CUP
PDF
/
Inventory: 2276
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Alloy
Contact Plating Silver
Mount Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Shell Material Aluminum Alloy
Insert Material Synthetic Rubber
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2006
Series JL05
Feature Ground
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Male Pins
Number of Positions 8 (7 + PE)
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Black
Applications Industrial, Marine, Telecommunications
Fastening Type Bayonet Lock
Contact Finish - Mating Silver
Current Rating (Amps) 23A
Orientation N (Normal)
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 46A
Shell Finish Zinc
Shell Size - Insert 22-23
Cable Opening 1.252 (31.80mm)
Compliance
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
