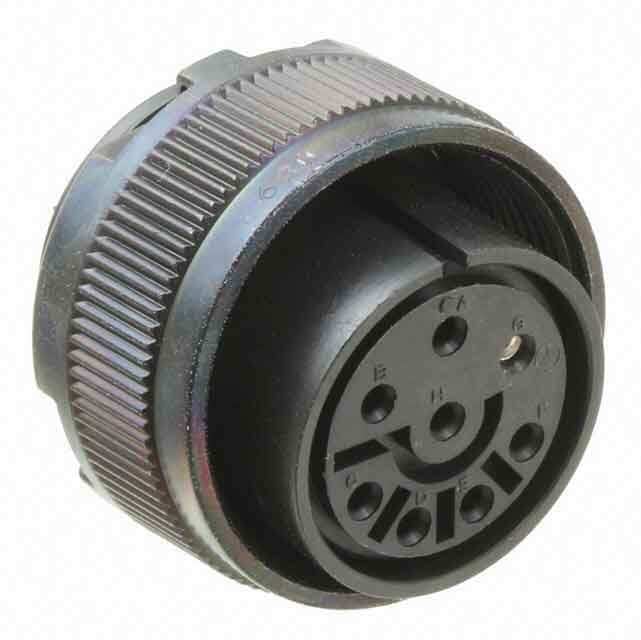

JL04V-6A20-7SE-R image
Favorite
JL04V-6A20-7SE-R image
Favorite

JL04V-6A20-7SE-R

JAE Electronics
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description CONN PLUG FMALE 8POS SOLDER CUP
PDF
/
Inventory: 3880
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant

Technical

Cable Opening 1.063 (27.00mm)
Shell Size - Insert 20-7
Shell Finish Zinc
Current Rating 13A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation N (Normal)
Contact Finish - Mating Silver
Fastening Type Threaded
Voltage - Rated 100VAC 400VAC
Applications Industrial, Medical, Telecommunications, Test Equipment & Measurement
Color Black
Number of Positions 8 (7 + PE)
Connector Type Plug, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Coupling Nut, Ground Lug
Series JL04V
Published 2006
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Insert Material Synthetic Resin
Shell Material Aluminum Alloy
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 14 Weeks
