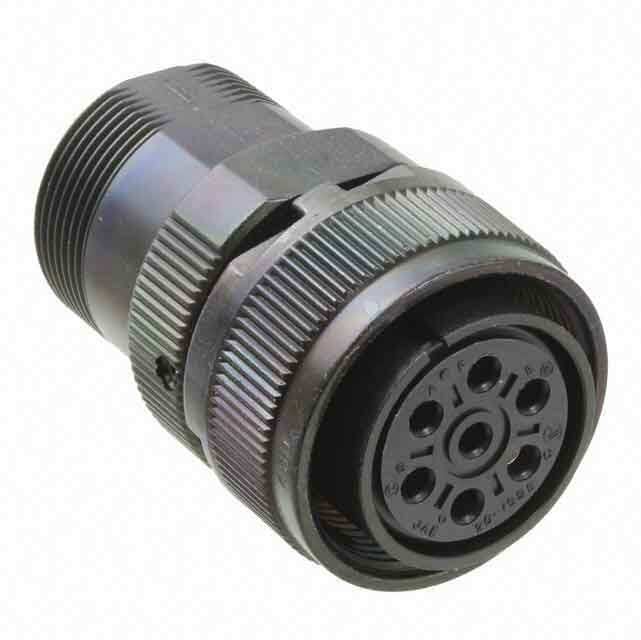

JL04V-6A20-15SE-EB-R image
Favorite
JL04V-6A20-15SE-EB-R image
Favorite

JL04V-6A20-15SE-EB-R

JAE Electronics
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description CONN PLUG STRAIGHT 7POS W/SOCKET
PDF
/
Inventory: 3153
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant

Technical

Shell Size - Insert 20-15
Shell Finish Zinc
Current Rating 23A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation N (Normal)
Contact Finish - Mating Silver
Fastening Type Threaded
Applications Industrial, Medical, Telecommunications, Test Equipment & Measurement
Color Black
Number of Positions 7 (6 + PE)
Connector Type Plug, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Backshell, Coupling Nut, Ground Lug
Series JL04V
Published 2006
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Backshell Material, Plating Aluminum Alloy, Zinc
Insert Material Synthetic Resin
Shell Material Aluminum Alloy
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 12 Weeks
