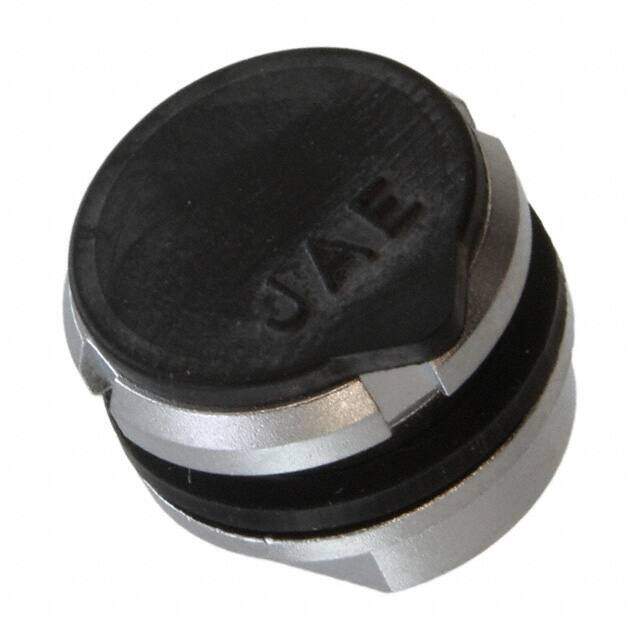

JB5CS08FN00
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT WATERPROOF 8POS SOLDER
PDF
/
Inventory: 7828
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP68, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Technical
Wire/Cable Gauge 28 AWG
Contact Gender Female
Voltage - Rated AC 200V
Shell Size - Insert S
Shell Finish Chromium
Current Rating 2A
Ingress Protection IP68 - Dust Tight, Waterproof
Shielding Shielded
Orientation Keyed
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 200VAC
Applications Medical, Telecommunications, Test & Measurement
Color Silver
Number of Positions 8
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Dust Cap
Series JB5
Published 2004
Packaging Tray
Operating Temperature -55°C~85°C
Physical
Insert Material Synthetic Resin
Shell Material Copper Alloy
Insulation Material Plastic
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount
Mount Bulkhead, Front Side Nut, Jam Nut, Panel
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
