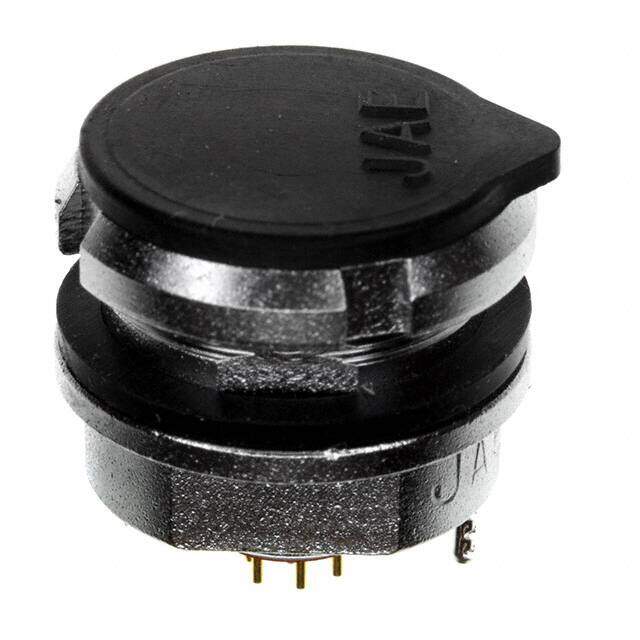

JB5CS08AN00 image
Favorite
JB5CS08AN00 image
Favorite

JB5CS08AN00

JAE Electronics
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description CONN RCPT FMALE 8POS GOLD SOLDER
PDF
/
Inventory: 9626
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings Dust Tight, IP68, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Contact Finish Thickness - Mating 30.0μin 0.76μm

Technical

Wire/Cable Gauge 26 AWG
Contact Gender Female
Shell Size - Insert S
Shell Finish Chromium
Current Rating 2A
Ingress Protection IP68 - Dust Tight, Waterproof
Shielding Shielded
Orientation Keyed
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 200VAC
Applications Medical, Telecommunications, Test & Measurement
Color Silver
Number of Positions 8
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Dust Cap, Ground
Series JB5
Published 2004
Packaging Tray
Operating Temperature -55°C~85°C

Physical

Insert Material Synthetic Resin
Shell Material Copper Alloy
Insulation Material Plastic
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Panel, Through Hole
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 12 Weeks
