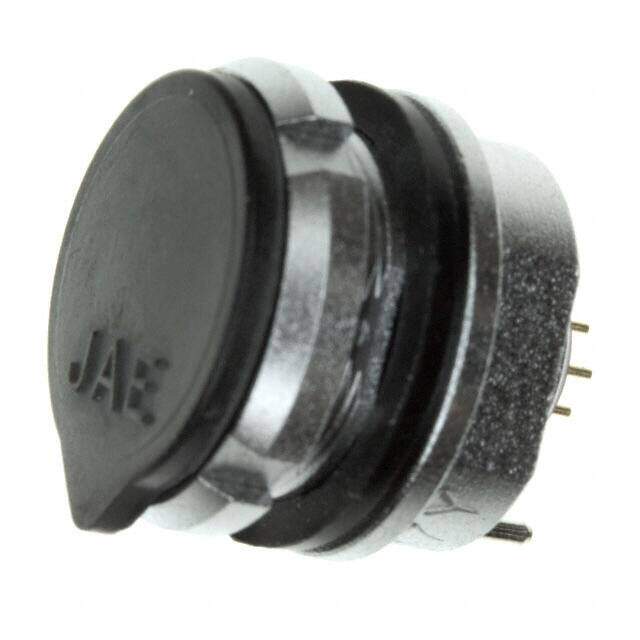

JB5CS06AN00N
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 6POS GOLD SOLDER
PDF
/
Inventory: 1564
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP68, Waterproof
RoHS Status RoHS Compliant
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Technical
Contact Gender Female
Shell Size - Insert S
Shell Finish Chromium
Current Rating 2A
Ingress Protection IP68 - Dust Tight, Waterproof
Shielding Shielded
Orientation N (Normal)
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 200VAC
Applications Medical, Telecommunications, Test & Measurement
Color Silver
Number of Positions 6
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Dust Cap, Ground
Series JB5
Published 2007
Packaging Tray
Operating Temperature -55°C~85°C
Physical
Insert Material Synthetic Resin
Shell Material Copper Alloy
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Panel, Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
