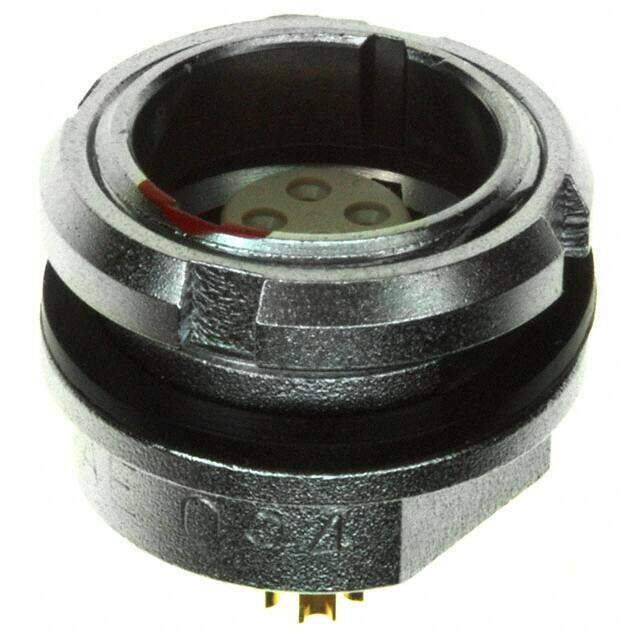

JB5CS04FM00N
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT WATERPROOF 4POS SOLDER
PDF
/
Inventory: 5919
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Bulkhead, Front Side Nut, Jam Nut, Panel
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Shell Material Copper Alloy
Insert Material Synthetic Resin
Technical
Operating Temperature -55°C~85°C
Packaging Tray
Published 2007
Series JB5
Feature Dust Cap
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 4
Max Operating Temperature 85°C
Min Operating Temperature -55°C
Color Silver
Applications Medical, Telecommunications, Test & Measurement
Gender Female
Voltage - Rated 320VAC
Fastening Type Push-Pull
Contact Finish - Mating Gold
Current Rating (Amps) 3A
Orientation N (Normal)
Shielding Shielded
Ingress Protection IP68 - Dust Tight, Waterproof
Current Rating 3A
Shell Finish Chromium
Shell Size - Insert S
Number of Contacts 4
Contact Gender Female
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
RoHS Status RoHS Compliant
Ratings Dust Tight, IP68, Waterproof
