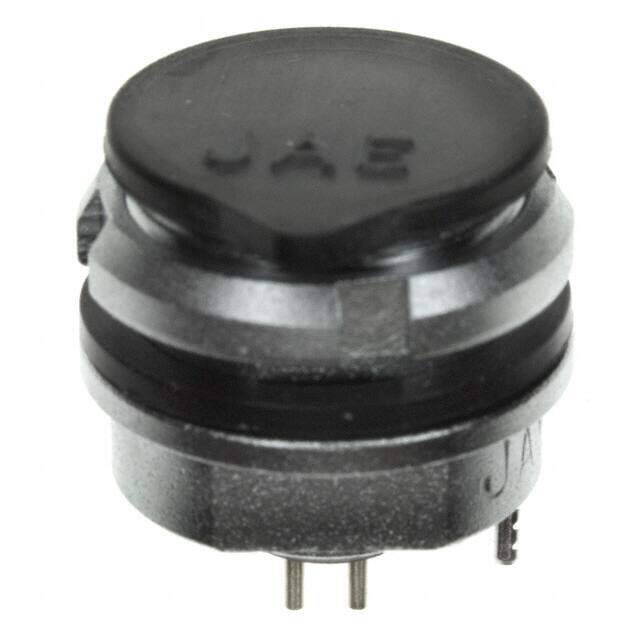

JB5CS04AM00N image
Favorite
JB5CS04AM00N image
Favorite

JB5CS04AM00N

JAE Electronics
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description CONN RCPT FMALE 4POS GOLD SOLDER
PDF
/
Inventory: 4333
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Contact Material Copper Alloy
Mount Bulkhead, Panel, Through Hole
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Shell Material Copper Alloy
Insert Material Synthetic Resin

Technical

Operating Temperature -55°C~85°C
Packaging Tray
Published 2007
Series JB5
Feature Dust Cap, Ground
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 4
Color Silver
Applications Medical, Telecommunications, Test & Measurement
Voltage - Rated 320VAC
Fastening Type Push-Pull
Contact Finish - Mating Gold
Orientation N (Normal)
Shielding Shielded
Ingress Protection IP68 - Dust Tight, Waterproof
Current Rating 3A
Shell Finish Chromium
Shell Size - Insert S
Contact Gender Female

Dimensions

Contact Finish Thickness - Mating 30.0μin 0.76μm

Compliance

RoHS Status RoHS Compliant
Ratings Dust Tight, IP68, Waterproof
