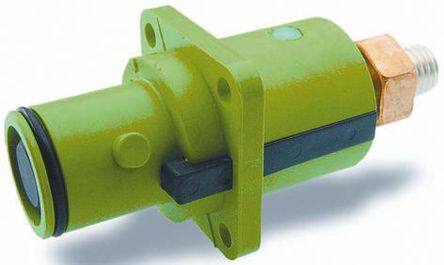

SNPM-P-TP-GN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
IP67 Green Panel Mount 1P Mains Connector Plug, Rated At 250A, 1000 V ac
PDF
/
Inventory: 1657
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Copper
Mount Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Shell Material Thermoplastic
Insert Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -30°C~125°C
Packaging Bulk
Published 2011
Series Snaplock
Feature Slide Lock
Part Status Active
Termination Threaded
Connector Type Plug, Male Pins
Number of Positions 1
Color Green
Gender Male
Voltage - Rated 1000VAC 1500VDC
Fastening Type Bayonet Lock
Contact Finish - Mating Silver
Orientation Straight
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 250A
Max Current Rating 250A
Dimensions
Length 110mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
