SNPM-P-TP-BN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

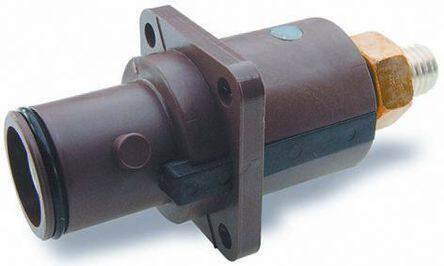

ITT CANNON SNPM-P-TP-BN CONNECTOR, MALE, PANEL, BROWN
PDF
/
Inventory: 5477
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Copper
Mount Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Shell Material Thermoplastic
Insert Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -30°C~125°C
Packaging Bulk
Published 2011
Series Snaplock
Feature Slide Lock
Part Status Active
Termination Threaded
Connector Type Plug, Male Pins
Color Brown
Gender Male
Fastening Type Bayonet Lock
Voltage - Rated DC 415V
Contact Finish - Mating Silver
Orientation Straight
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 250A
Voltage - Rated AC 415V
Max Voltage Rating (AC) 1kV
Max Current Rating 250A
Number of Ports 1
Thread Size M12
Hole Diameter 5 mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Ratings Dust Tight, IP67, Waterproof
