SNPM-P-TP-BL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

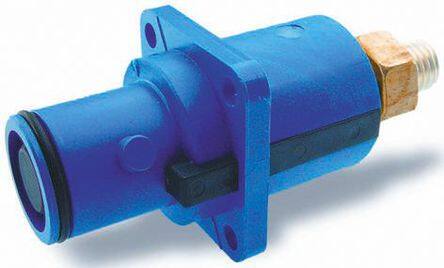

ITT CANNON SNPM-P-TP-BL CONNECTOR, MALE, PANEL, BLUE
PDF
/
Inventory: 1461
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Length 110mm
Technical
Hole Diameter 5 mm
Thread Size M12
Max Current Rating 250A
Voltage - Rated AC 415V
Current Rating 250A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Straight
Contact Finish - Mating Silver
Voltage - Rated DC 415V
Fastening Type Bayonet Lock
HTS Code 8536.69.40.30
Gender Male
Color Blue
Number of Positions 1
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Threaded
Part Status Active
Feature Slide Lock
Series Snaplock
Published 2011
Packaging Bulk
Operating Temperature -30°C~125°C
Physical
Insert Material Polybutylene Terephthalate (PBT)
Shell Material Thermoplastic
Mounting Feature Flange
Mounting Type Panel Mount
Mount Flanges, Panel
Contact Material Copper
Supply Chain
Factory Lead Time 13 Weeks
