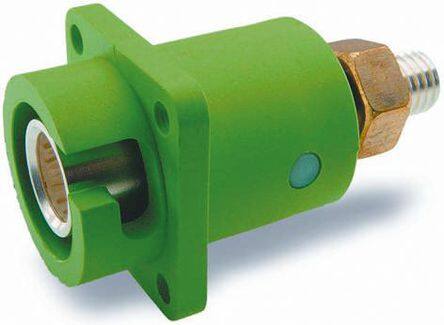

SNPF-S-TP-GN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONNECTOR, FEMALE, PANEL, GREEN
PDF
/
Buying Options
Total Price: USD $74.74
Unit Price: USD $74.741613
≥1 USD $74.741613
≥10 USD $70.510957
≥100 USD $66.519771
≥500 USD $62.754504
≥1000 USD $59.202355
Inventory: 2828
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Copper
Mount Cable, Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Shell Material Thermoplastic
Insert Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -30°C~125°C
Packaging Bulk
Published 2011
Series Snaplock
Part Status Active
Termination Threaded
Connector Type Receptacle, Female Sockets
Number of Positions 1
Color Green
Gender Receptacle
Fastening Type Bayonet Lock
Voltage - Rated DC 415V
Contact Finish - Mating Silver
Orientation Straight
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 250A
Voltage - Rated AC 415V
Thread Size M12
Hole Diameter 5 mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Ratings Dust Tight, IP67, Waterproof
