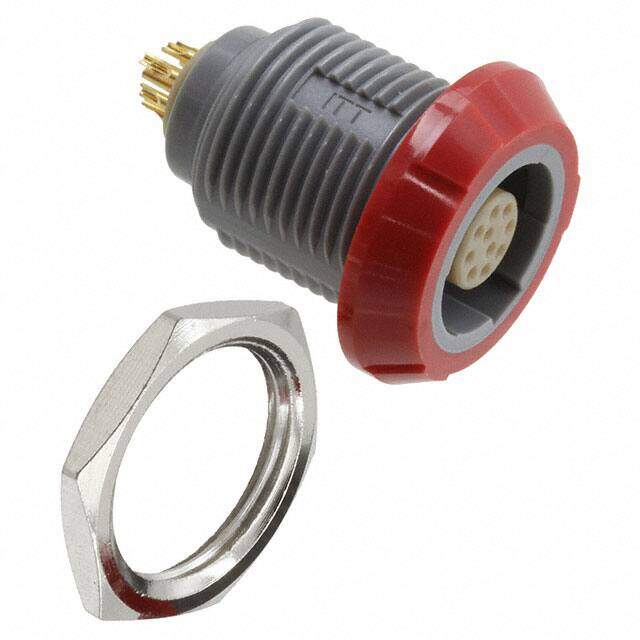

PLB4G220010
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 10POS SOLDER CUP
PDF
/
Inventory: 8614
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP50
RoHS Status RoHS Compliant
Dimensions
Contact Finish Thickness - Mating 20.0μin 0.51μm
Technical
Coupling Type SNAP
Backshell Type SOLID
Empty Shell NO
Current Rating 3A
Ingress Protection IP50 - Dust Protected
Shielding Unshielded
Orientation 0°
Total Number of Contacts 10
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Latch Lock, Push-Pull
HTS Code 8536.69.40.20
Applications Industrial, Medical, Testing Equipment & Measurement
Color Gray, Red
Number of Positions 10
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder Cup
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series PL
Published 2016
Packaging Bulk
Operating Temperature -50°C~150°C
Physical
Insert Material Polyetheretherketone (PEEK)
Shell Material Polysulfone (PSU)
Mounting Feature Bulkhead - Front or Rear Side Nut
Mounting Type Panel Mount
Mount Bulkhead, Panel, Rear Side Nut
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 8 Weeks
