PLA1G821004
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

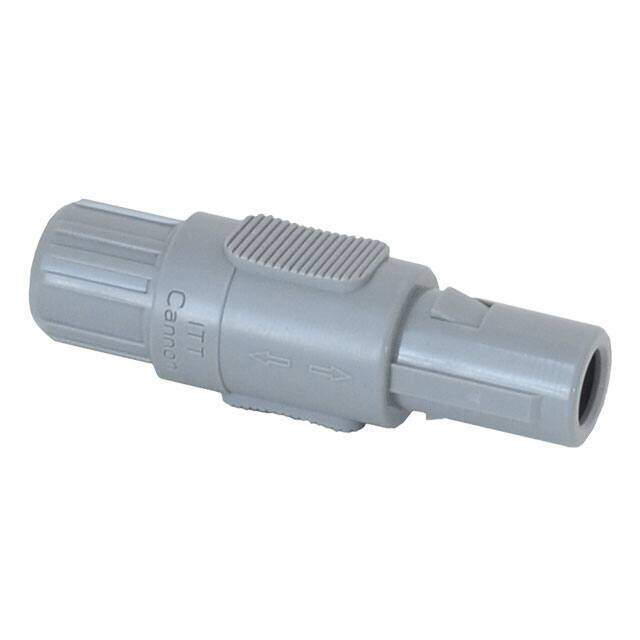

CONN PLUG MALE 4POS SOLDER CUP
PDF
/
Buying Options
Total Price: USD $11.61
Unit Price: USD $11.6072
≥1 USD $11.6072
≥10 USD $11.044
Inventory: 559
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Alloy
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Polysulfone (PSU)
Insert Material Plastic
Backshell Material, Plating Polysulfone (PSU)
Technical
Operating Temperature -50°C~150°C
Packaging Bulk
Published 2016
Series PL
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Cup
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 4
Color Gray
Applications Industrial, Medical, Testing Equipment & Measurement
Fastening Type Latch Lock, Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 4
Orientation 0°
Shielding Unshielded
Ingress Protection IP50 - Dust Protected
Current Rating 8A
Empty Shell NO
Backshell Type SOLID
Coupling Type SNAP
Cable Opening 0.106 ~ 0.154 (2.70mm ~ 3.90mm)
Dimensions
Contact Finish Thickness - Mating 20.0μin 0.51μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings IP50
