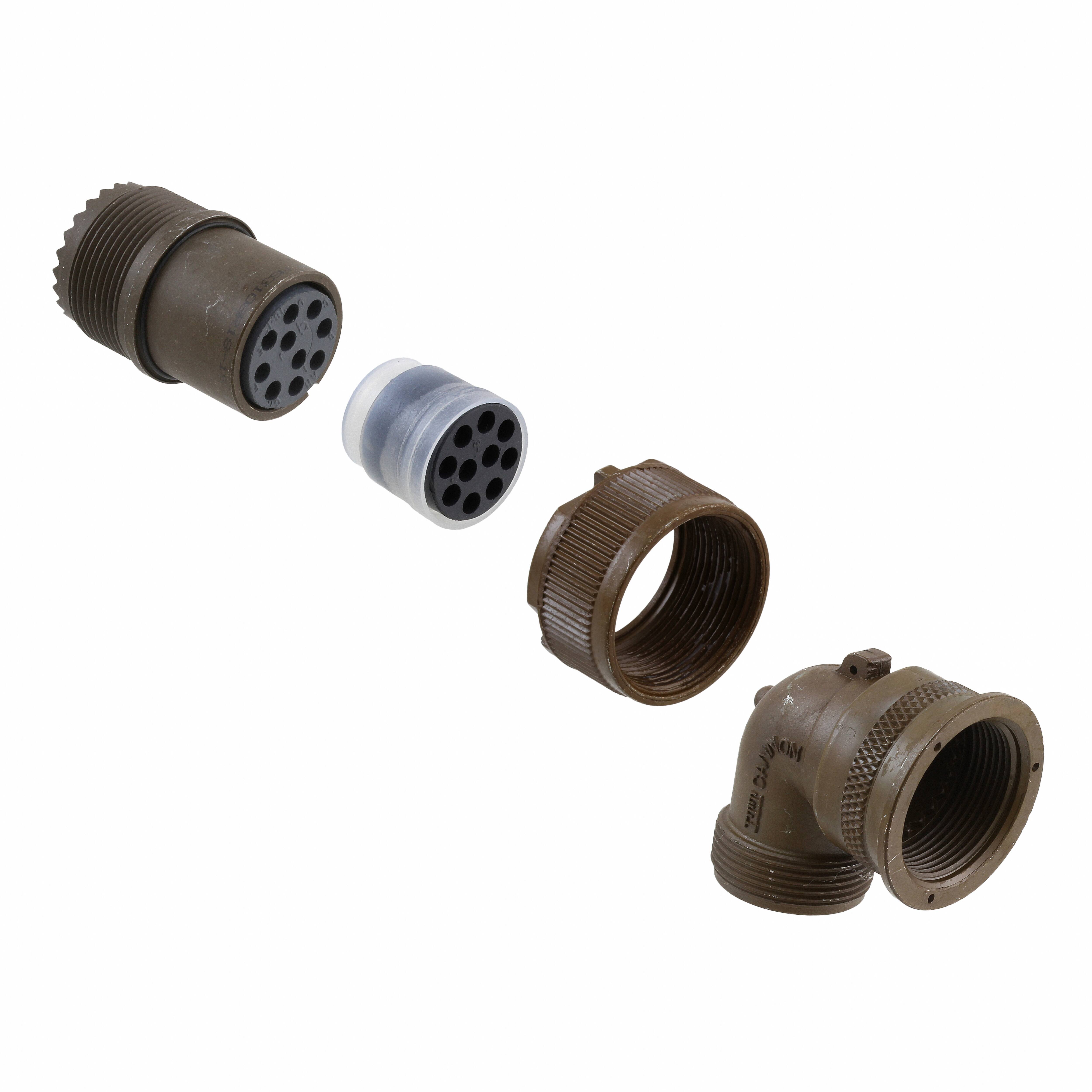

MS3108R18-1S
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
Conn MIL-C-5015 Circular SKT 10 POS Solder RA Cable Mount 10 Terminal 1 Port
PDF
/
Inventory: 2680
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Shell Material Aluminum Alloy
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2011
Series Military, MIL-DTL-5015, MS
Feature Backshell, Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
ECCN Code EAR99
Connector Type Plug, Female Sockets
Number of Positions 10
Color Olive Drab
Gender Male
Voltage - Rated 200VAC 250VDC
HTS Code 8536.69.40.20
Fastening Type Threaded
Contact Finish - Mating Silver
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 10
Orientation N (Normal)
Ingress Protection Environment Resistant
Reach Compliance Code compliant
Current Rating 22A
Shell Finish Olive Drab Cadmium
Shell Size - Insert 18-1
Empty Shell NO
Backshell Type SOLID
Environmental Characteristics CORROSION RESISTANT
Max Current Rating 22A
Plating Aluminium, Cadmium, Chromate
Number of Ports 1
Compliance
Radiation Hardening No
Ratings Environment Resistant, IP67
