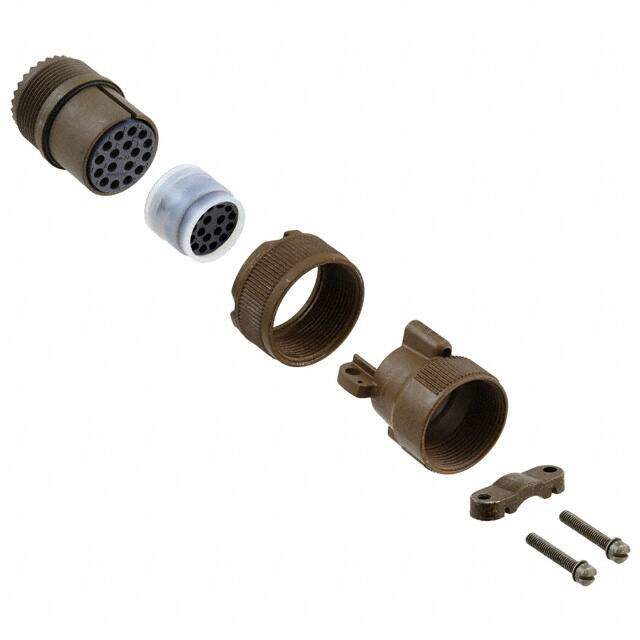

MS3106F20-29S image
Favorite
MS3106F20-29S image
Favorite

MS3106F20-29S

ITT Cannon, LLC
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description CONN PLUG FMALE 17POS SOLDER CUP
PDF
/
Buying Options
Total Price: USD $164.75
Unit Price: USD $164.7536
≥1 USD $164.7536
Inventory: 19
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status Non-RoHS Compliant

Technical

Insulation Resistance 5GOhm
Contact Style Socket
Backshell Type SOLID
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
Shell Size - Insert 20-29
Shell Finish Olive Drab Cadmium
Military Standard MIL-C-5015
Current Rating 13A
Ingress Protection Environment Resistant
Orientation N (Normal)
Total Number of Contacts 17
Current Rating (Amps) 22A
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance YES
Contact Finish - Mating Silver
Fastening Type Threaded
HTS Code 8536.69.40.20
Voltage - Rated 500VAC 700VDC
Gender Male
Color Olive Drab
Number of Positions 17
Connector Type Plug, Female Sockets
ECCN Code EAR99
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
Feature Cable Clamp, Coupling Nut
JESD-609 Code e0
Series Military, MIL-DTL-5015, MS
Published 2000
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shell Material Aluminum Alloy
Mounting Type Free Hanging (In-Line)
Contact Material Brass, Copper

Supply Chain

Factory Lead Time 19 Weeks
