MS3106F14S-5S
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

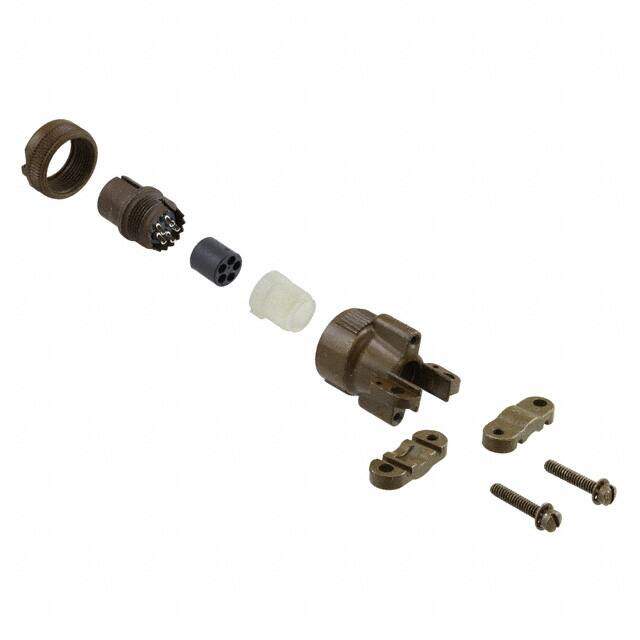

ITT CANNON MS3106F14S-5S PLUG, FREE, 5WAY
PDF
/
Buying Options
Total Price: USD $40.76
Unit Price: USD $40.7616
≥1 USD $40.7616
≥10 USD $35.69368
≥100 USD $34.151744
≥500 USD $33.049984
≥1000 USD $31.9484
≥3000 USD $30.18569
Inventory: 90
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Contact Material Copper
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Aluminum Alloy
Body Material Aluminium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2000
Series Military, MIL-DTL-5015, MS
JESD-609 Code e0
Feature Cable Clamp, Coupling Nut
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
ECCN Code EAR99
Connector Type Plug, Female Sockets
Number of Positions 5
Color Olive Drab
Gender Female
Fastening Type Threaded
Voltage - Rated DC 250V
Contact Finish - Mating Silver
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 5
Orientation N (Normal)
Ingress Protection Environment Resistant
Depth 2.16mm
Current Rating 22A
Military Standard MIL-C-5015
Shell Finish Olive Drab Cadmium
Shell Size - Insert 14S-5
Voltage - Rated AC 200V
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Working Voltage 250V
Backshell Type SOLID
Contact Style Socket
Insulation Resistance 5GOhm
Max Current Rating 22A
Plating Aluminium, Cadmium, Chromate
Number of Ports 1
Body Plating Chromate
Wire/Cable Gauge 16 AWG
Max Voltage Rating (DC) 250.2kV
Dimensions
Length 57.15mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Ratings Environment Resistant, IP67
