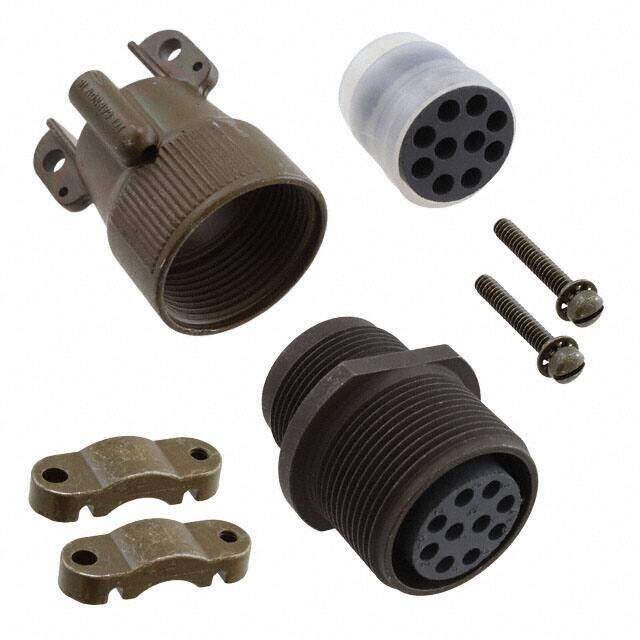

MS3101F18-1S
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
Conn MIL-C-5015 Circular SKT 10 POS Solder ST Cable Mount 10 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $85.03
Unit Price: USD $85.0344
≥1 USD $85.0344
≥10 USD $78.034
≥100 USD $75.03232
≥500 USD $72.53136
≥1000 USD $68.529648
Inventory: 124
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Contact Material Copper
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Aluminum Alloy
Body Material Aluminium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2013
Series Military, MIL-DTL-5015, MS
JESD-609 Code e0
Feature Cable Clamp
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 10
Color Olive Drab
Gender Receptacle
Voltage - Rated 500VAC 700VDC
Fastening Type Threaded
Contact Finish - Mating Silver
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 10
Orientation N (Normal)
Ingress Protection Environment Resistant
Depth 36.83mm
Current Rating 22A
Military Standard MIL-C-5015
Shell Finish Olive Drab Cadmium
Shell Size - Insert 18-1
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Backshell Type SOLID
Contact Style Socket
Body/Shell Style PLUG
Max Current Rating 22A
Plating Cadmium, Chromate
Dimensions
Length 68.28mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Ratings Environment Resistant
