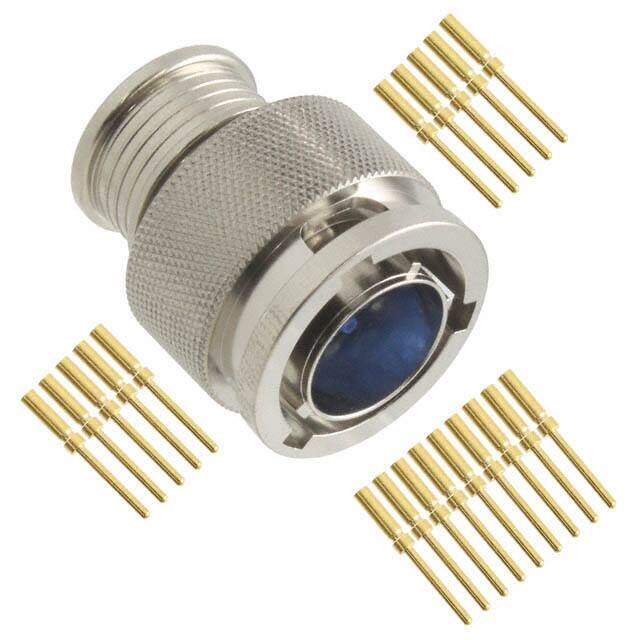

MKJ3A6F9-19PN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
PLUG, BAYONET, SIZE 9, 19WAY, PIN
PDF
/
Buying Options
Total Price: USD $99.74
Unit Price: USD $99.7392
≥1 USD $99.7392
≥10 USD $91.5244
≥100 USD $88.004576
≥500 USD $85.071008
≥1000 USD $80.37744
Inventory: 78
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Aluminum Alloy
Body Material Aluminium
Technical
Operating Temperature -55°C~150°C
Packaging Bulk
Published 2010
Series MKJ3
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Crimp
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 19
Gender Male
Voltage - Rated 500VAC
HTS Code 8536.69.40.20
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
Orientation N (Normal)
Shielding Shielded
Ingress Protection Environment Resistant
Current Rating 5A
Shell Finish Electroless Nickel
Shell Size - Insert 9-19
Max Current Rating 5A
Plating Electroless Nickel
Dimensions
Contact Finish Thickness - Mating 50.0μin 1.27μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Ratings Environment Resistant
