KPTC6F14-19PFMA
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

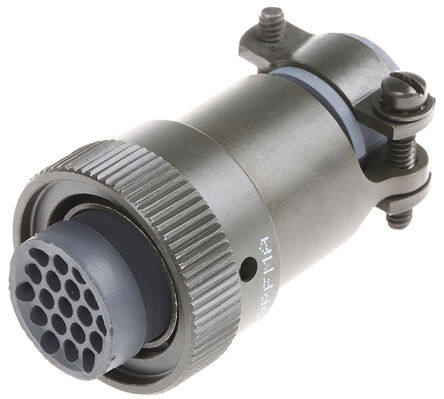

ITT CANNON KPTC6F14-19PFMA Circular Connector, KPTC Series, MIL-DTL-26482 Series I Equivalent, Straight Plug, 19, Solder Pin
PDF
/
Inventory: 1992
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Aluminum Alloy
Body Material Aluminium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2011
Series KPTC
JESD-609 Code e4
Feature Strain Relief
Part Status Active
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 19
Color Green
Voltage - Rated 600VAC 850VDC
Additional Feature STANDARD: MIL-DTL 26482
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option WATER PROOF
Total Number of Contacts 19
Orientation N (Normal)
Ingress Protection Environment Resistant
Current Rating 7.5A
Shell Finish Green Zinc Cobalt
Shell Size - Insert 14-19
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Contact Style Pin
Max Current Rating 7.5A
Plating Zinc
Body Plating Cadmium
Dimensions
Length 46mm
Compliance
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Ratings Environment Resistant
