1622014
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors - Housings
Description

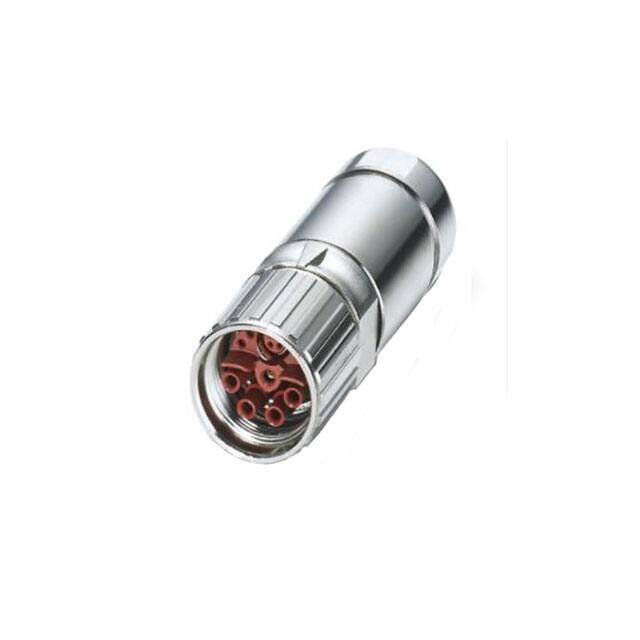

SH RoHS Compliant 2016 N (Normal) Connector Plug Housing -40C~130C
PDF
/
Inventory: 1127
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Contact Size 1.0mm 8 2.0mm Power 5
Note Contacts Not Included
Housing Color Silver
Shell Size - Insert M23-13
Reach Compliance Code not_compliant
Ingress Protection IP67/68 - Dust Tight, Waterproof
Shielding Shielded
Orientation N (Normal)
Contact Type Crimp
Fastening Type Threaded
Number of Positions 13 (8 + 4 Power + PE)
Type For Male Pins
Connector Type Plug Housing
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Coupling Nut
Series SH
Published 2016
Packaging Bulk
Operating Temperature -40°C~130°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Gadolinium-Zinc
Contact Shape Circular
Number of Pins 13
Mounting Type Free Hanging (In-Line)
Supply Chain
Factory Lead Time 5 Weeks
