RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors - Housings

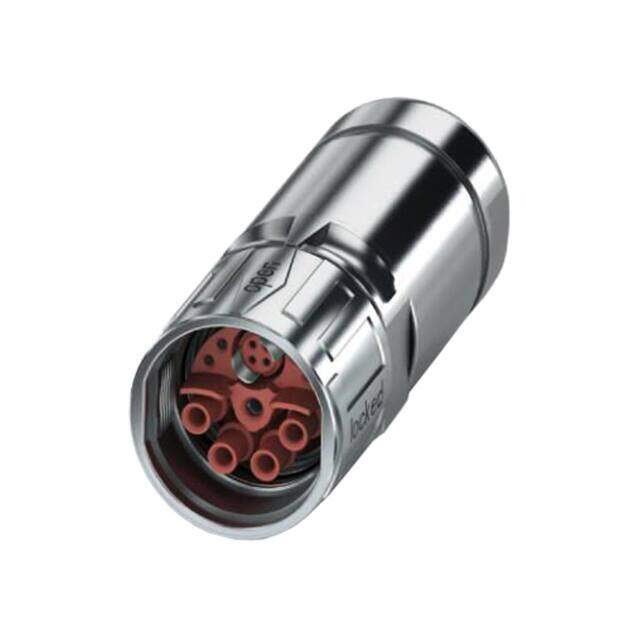

Description 13 (4 + 4 Data + 4 Power + PE) Position Circular Connector Plug for Female Contacts Free Hanging (In-Line) Shielded
PDF
/
Buying Options
Total Price: USD $86.65
Unit Price: USD $86.6536
≥1 USD $86.6536
≥10 USD $79.72096
≥100 USD $73.65512
≥500 USD $70.188888
Inventory: 18
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Number of Pins 4
Contact Shape Circular
Shell Material Metal
Insert Material Polyamide (PA66), Nylon 6/6

Technical

Operating Temperature -40°C~130°C
Packaging Bulk
Series SH
Feature Backshell, Coupling Nut
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 13 (4 + 4 Data + 4 Power + PE)
Fastening Type Push-Twist
Contact Type Crimp
Orientation N (Normal)
Shielding Shielded
Ingress Protection IP67/68 - Dust Tight, Waterproof
Reach Compliance Code not_compliant
Shell Size - Insert M23-13
Housing Color Silver
Note Contacts Not Included
Contact Size 1.0mm 4 0.8mm Data 4 2.0mm Power 5

Compliance

RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
