1605852
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors - Housings
Description

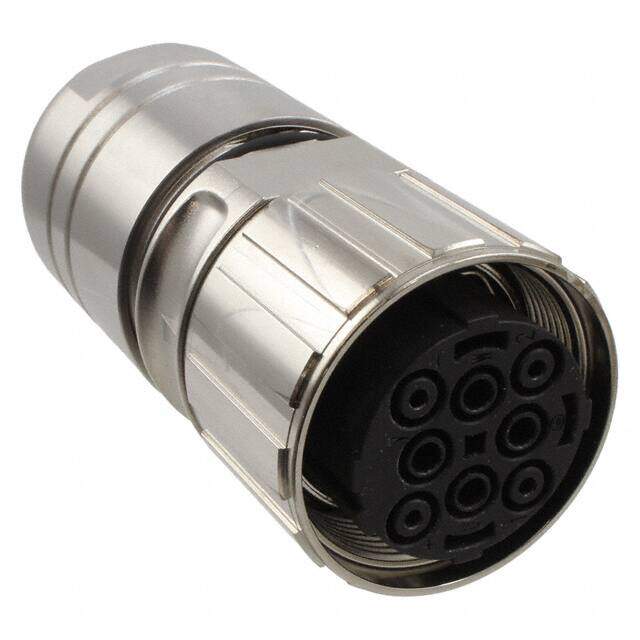

Circular Metric Connectors SM-7ES1N8A8003
PDF
/
Inventory: 1165
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Contact Shape Circular
Shell Material Gadolinium-Zinc
Housing Material Zinc
Weight 402.270009g
Insert Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Published 2013
Series SM
Feature Backshell, Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 8 (4 + 3 Power + PE)
Voltage - Rated 630V
Fastening Type Threaded
Contact Type Crimp
Orientation N (Normal)
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code not_compliant
Current Rating 30A
Shell Size - Insert M40-8
Housing Color Silver
Note Contacts Not Included
Contact Size 2.0mm 4 3.6mm Power 4
Thread Size M40
Wire/Cable Diameter 17 mm
Compliance
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
