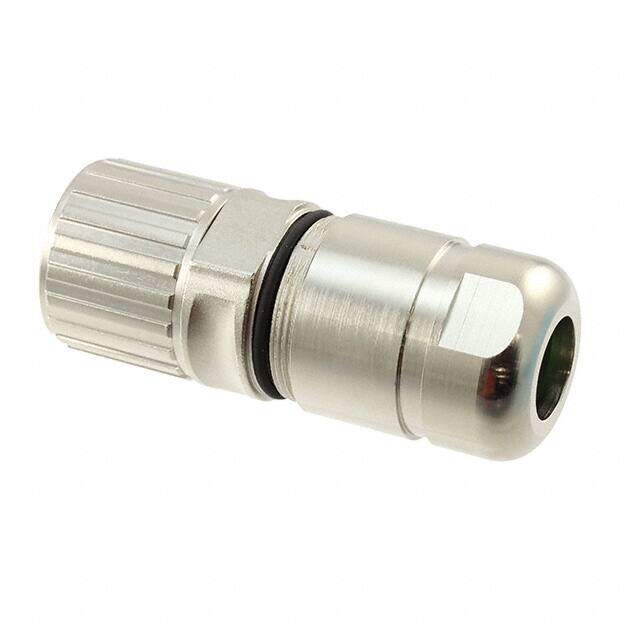

1605602
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / Circular Connectors - Housings
Description
Circular Metric Connectors SF-7ES1N8A80DU 8P P30-M23 F INSRT
PDF
/
Buying Options
Total Price: USD $45.49
Unit Price: USD $45.4872
≥1 USD $45.4872
≥10 USD $41.84576
≥100 USD $38.66192
≥500 USD $36.842608
≥1000 USD $36.640349
Inventory: 35
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Technical
Thread Size M23
Contact Size 1.0mm 4 2.0mm Power 4
Note Contacts Not Included
Housing Color Silver
Contact Gender Female
Shell Size - Insert M23-8
Current Rating 30A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation N (Normal)
Contact Type Crimp
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated DC 630V
Fastening Type Threaded
Voltage - Rated 630V
Gender Receptacle
Number of Positions 8 (4 + 3 Power + PE)
Type For Female Sockets
Connector Type Plug Housing
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Coupling Nut
Series SF
Published 2010
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Body Material Zinc
Insert Material Polyamide (PA66), Nylon 6/6
Weight 124.759986g
Shell Material Gadolinium-Zinc
Contact Shape Circular
Number of Pins 8
Package / Case Metal
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 4 Weeks
