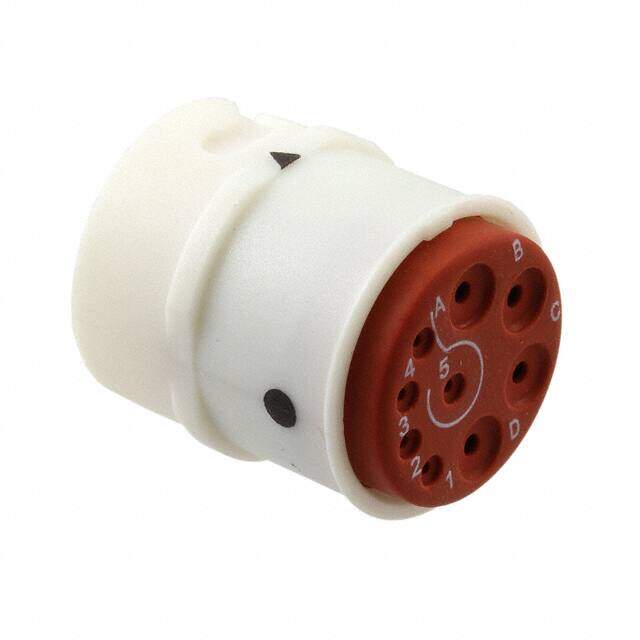

SJS860900
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors - Housings
Description
Lighting Connectors Luminus Size 22 9P Inline Recpt
PDF
/
Buying Options
Total Price: USD $28.27
Unit Price: USD $28.2656
≥1 USD $28.2656
≥10 USD $24.75088
≥100 USD $23.681504
≥500 USD $22.917664
≥1000 USD $22.153824
≥3000 USD $20.931504
Inventory: 66
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Stainless Steel, Steel
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Contact Shape Circular
Shell Material Polyamide (PA66), Nylon 6/6
Housing Material Polyamide
Body Material Nylon, Polyamide
Technical
Operating Temperature -65°C~155°C
Packaging Bulk
Published 2009
Series Luminus
Feature Dust Cap
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Receptacle Housing
Type For Male Pins
Number of Positions 9
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color White
Gender Receptacle
Voltage - Rated 600V
Fastening Type Bayonet Lock
Contact Type Crimp
Orientation Straight
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 13A
Shell Size - Insert 10
Number of Contacts 9
Contact Gender Male
Housing Color White
Note Contacts Not Included
Contact Size 16 4 22D 5
Dimensions
Length 19.2024mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Ratings Environment Sealed
