SJS860520
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors - Housings
Description

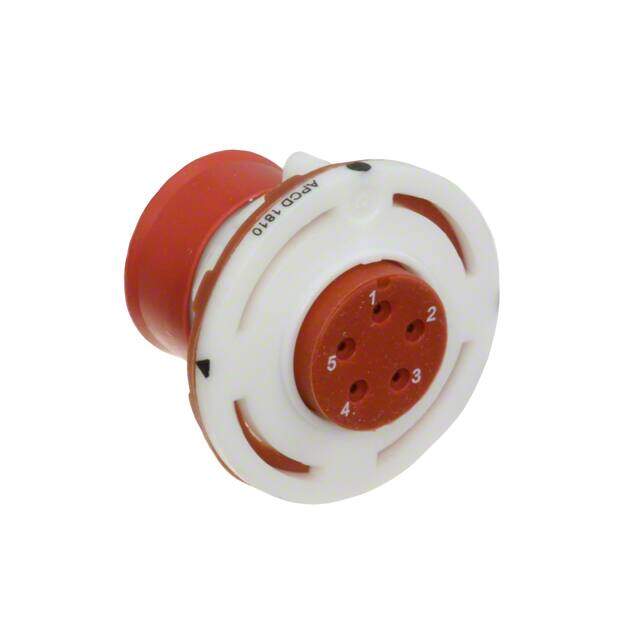

Lighting Connectors 5 Pin Size 22 Panel Recpt White
PDF
/
Buying Options
Total Price: USD $34.01
Unit Price: USD $34.014051
≥1 USD $34.014051
≥10 USD $32.088725
≥100 USD $30.272383
≥500 USD $28.558854
≥1000 USD $26.942317
Inventory: 1766
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Stainless Steel, Steel
Mount Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Contact Shape Circular
Shell Material Polyamide (PA66), Nylon 6/6
Housing Material Polyamide
Technical
Operating Temperature -65°C~155°C
Packaging Bulk
Published 2010
Series Luminus
Feature Dust Cap
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Receptacle Housing
Type For Male Pins
Number of Positions 5
Color White
Gender Receptacle
Voltage - Rated 600V
Fastening Type Bayonet Lock
Contact Type Crimp
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 5A
Shell Size - Insert 8
Number of Contacts 5
Housing Color White
Note Contacts Not Included
Contact Size 22D
Dimensions
Length 19.2024mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Ratings Environment Sealed
