SJS830270
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors - Housings
Description

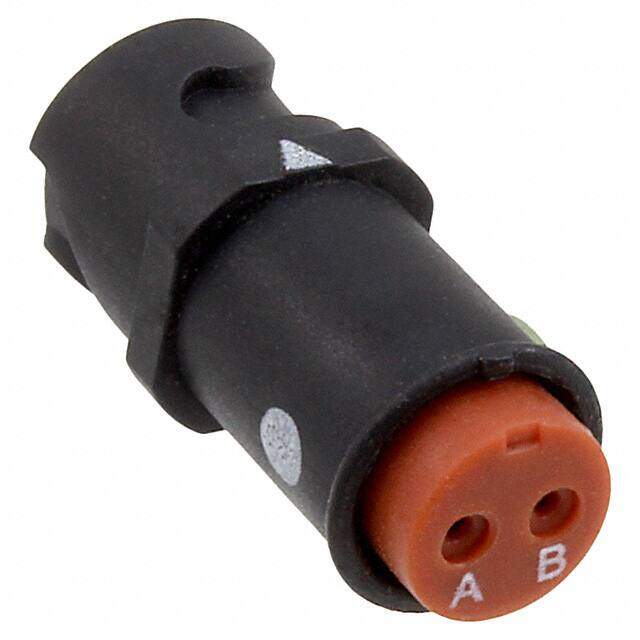

Lighting Connectors Luminus Size 22 2P Inline Recpt
PDF
/
Buying Options
Total Price: USD $24.65
Unit Price: USD $24.6488
≥1 USD $24.6488
≥10 USD $21.58376
≥100 USD $19.318552
Inventory: 243
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Stainless Steel, Steel
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Contact Shape Circular
Shell Material Polyamide (PA66), Nylon 6/6
Housing Material Polyamide
Body Material Nylon, Polyamide
Technical
Operating Temperature -65°C~125°C
Packaging Bulk
Published 2009
Series Luminus
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Receptacle Housing
Type For Male Pins
Number of Positions 2
Max Operating Temperature 125°C
Min Operating Temperature -65°C
Color Black
Gender Receptacle
Voltage - Rated 600V
Fastening Type Bayonet Lock
Contact Type Crimp
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 5A
Shell Size - Insert 5
Number of Contacts 2
Contact Gender Female
Housing Color Black
Note Contacts Not Included
Contact Size 22D
Wire/Cable Gauge 22 AWG
Dimensions
Length 18.796mm
Width 8.0772mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Ratings Environment Sealed
