SJS830202
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors - Housings
Description

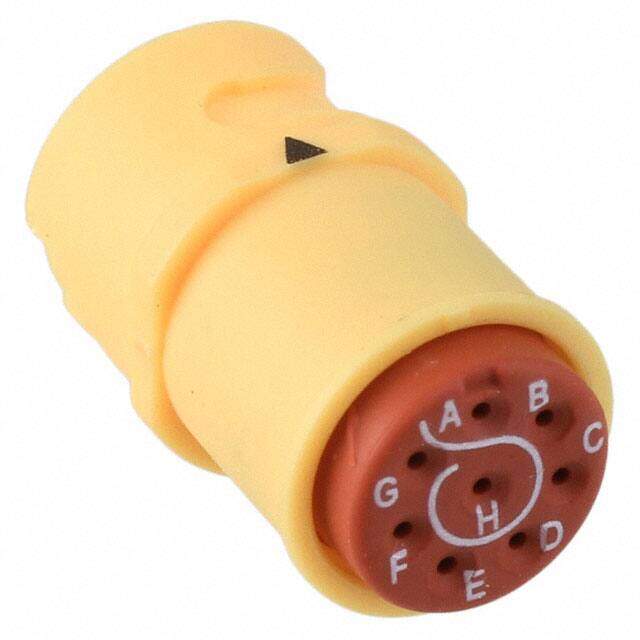

CONN RCPT HSNG MALE 8POS INLINE
PDF
/
Buying Options
Total Price: USD $26.07
Unit Price: USD $26.0656
≥1 USD $26.0656
≥10 USD $22.82192
≥100 USD $20.426824
Inventory: 87
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Contact Shape Circular
Shell Material Polyamide (PA66), Nylon 6/6
Housing Material Polyamide
Technical
Operating Temperature -65°C~125°C
Packaging Bulk
Published 2012
Series Luminus
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Receptacle Housing
Type For Male Pins
Number of Positions 8
Voltage - Rated 600V
Fastening Type Bayonet Lock
Contact Type Crimp
Orientation C
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 5A
Shell Size - Insert 7
Housing Color Yellow
Note Contacts Not Included
Contact Size 22D
Wire/Cable Gauge 22 AWG
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Environment Sealed
